2004 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

Second-Row Buckle Removal/Installation

Remove the seat cushion. (See SECOND-ROW SEAT DISASSEMBLY/ASSEMBLY .)
Remove the bolt, and then remove the second-row buckle.

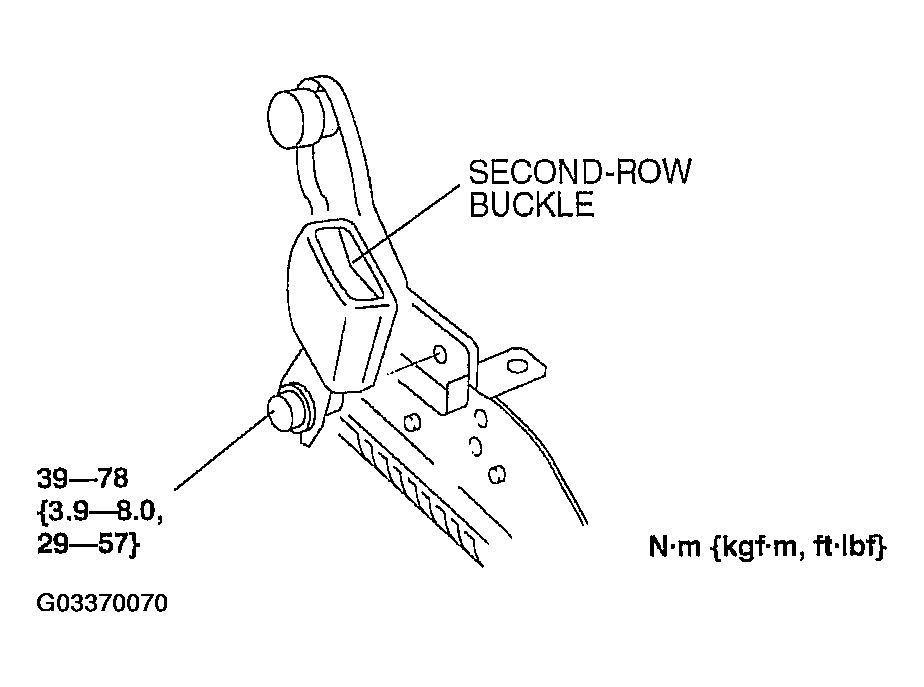

Fig 1: Removing Bolt
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
