Remove the halfshaft. Refer to HALFSHAFT - FRONT , page .

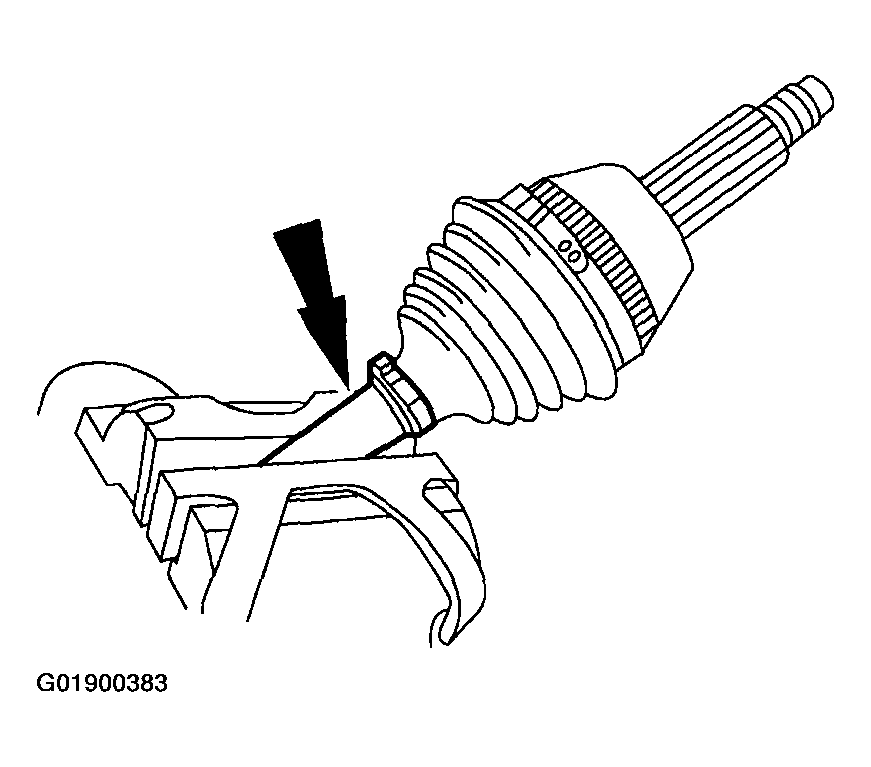

Fig 1: Placing Halfshaft And Constant Velocity (CV) Joint In Vise
Courtesy of MAZDA MOTORS CORP.
Secure the halfshaft and constant velocity (CV) joint in a vise using protective jaw covers.

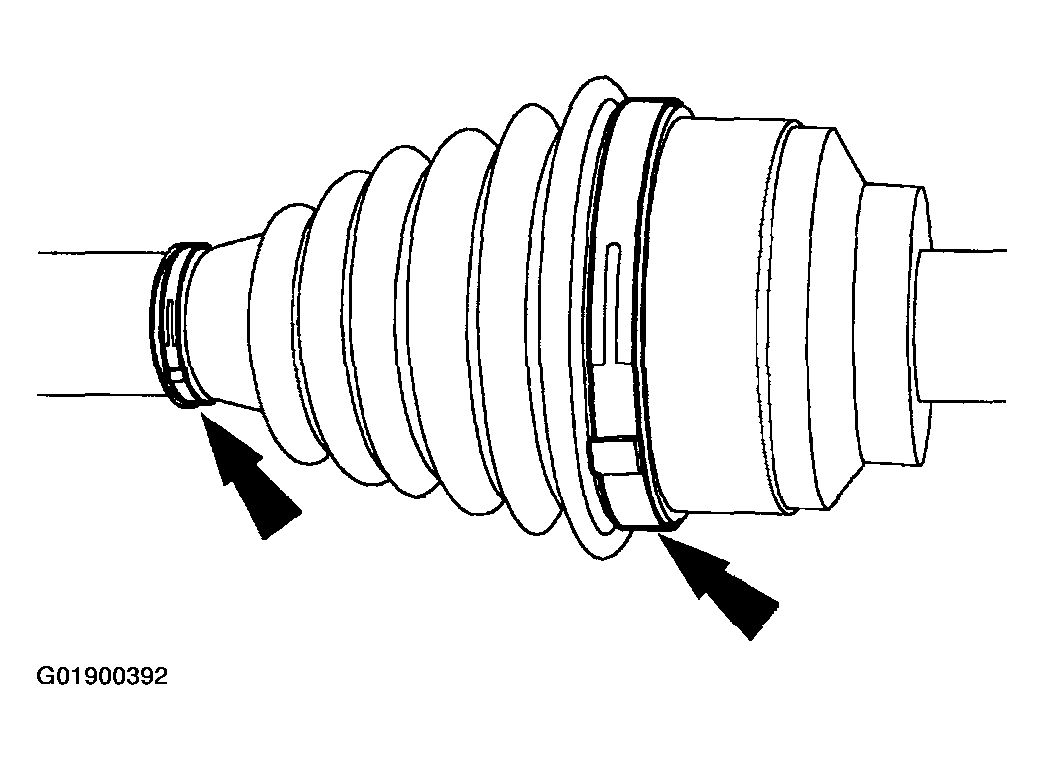

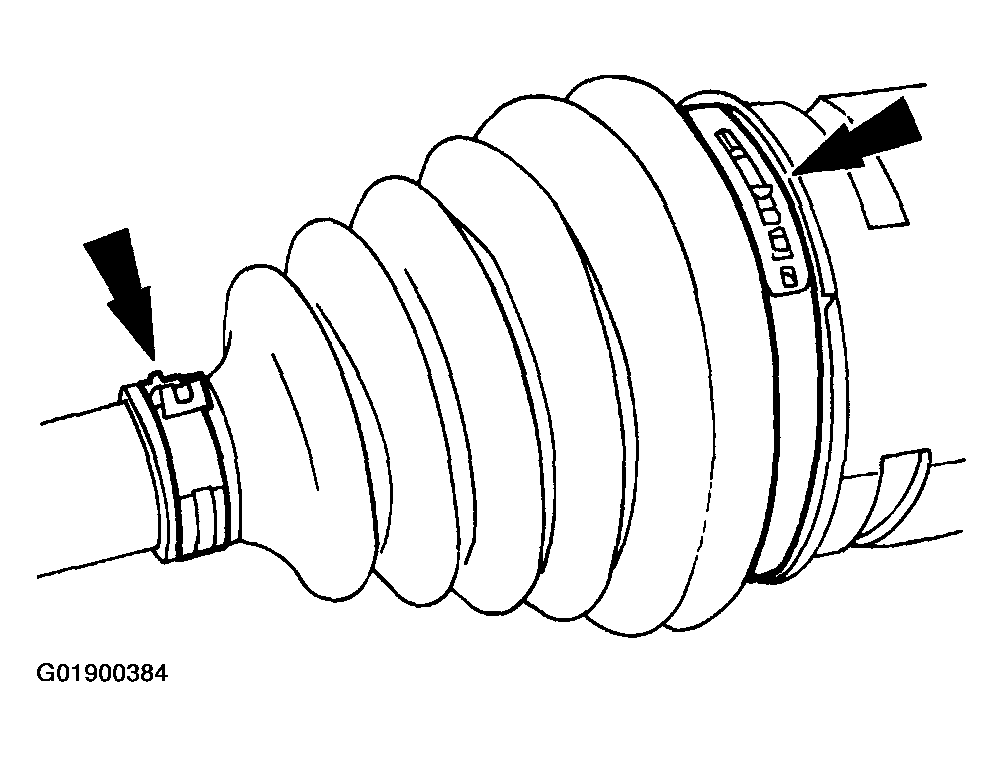

Fig 2: Removing Inboard Halfshaft Boot Clamps
Courtesy of MAZDA MOTORS CORP.
Remove the inboard halfshaft boot clamps.

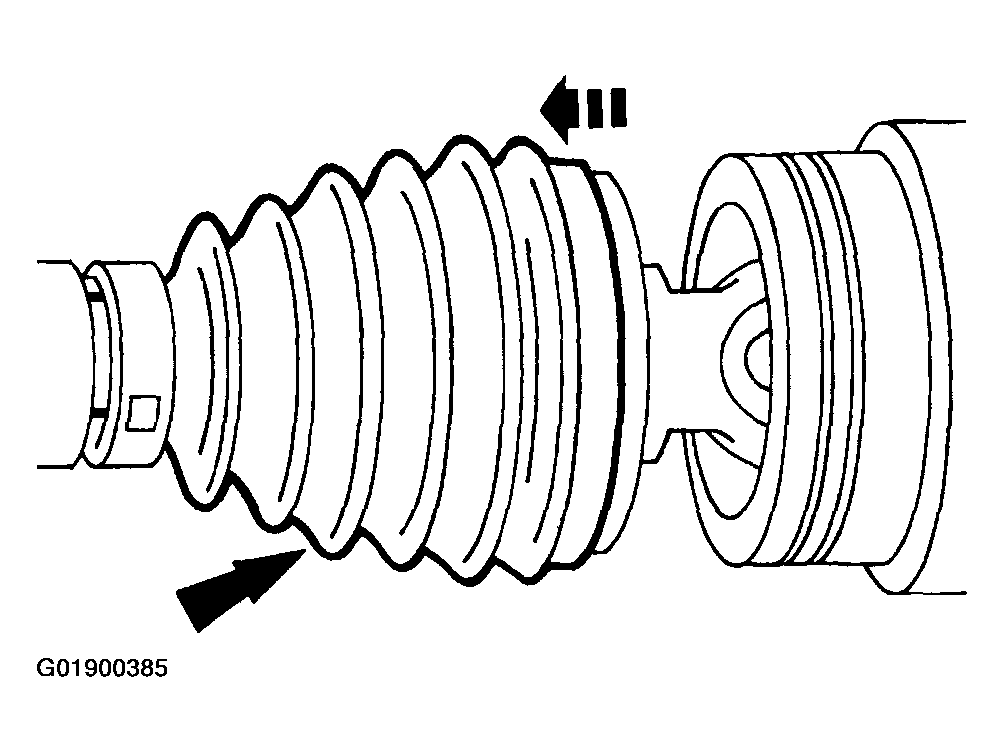

Fig 3: Sliding Inboard Halfshaft Boot
Courtesy of MAZDA MOTORS CORP.
Slide the inboard halfshaft boot off the inboard CV joint housing.

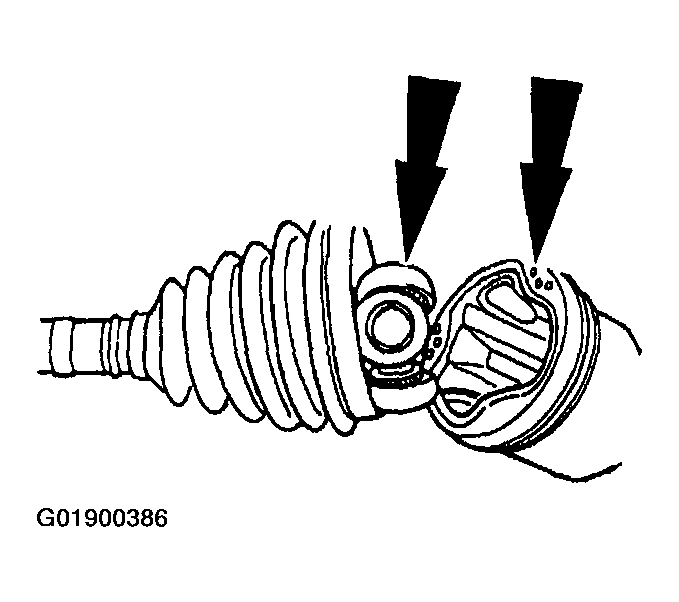

Fig 4: Removing Tripod Joint From Inboard CV Joint Housing
Courtesy of MAZDA MOTORS CORP.
Separate the tripod joint from the inboard CV joint housing.

Fig 5: Identifying Tripod Joint And Halfshaft Mark Position
Courtesy of MAZDA MOTORS CORP.
If reinstalling the original tripod joint, mark the tripod joint and the halfshaft to make sure of correct installation.

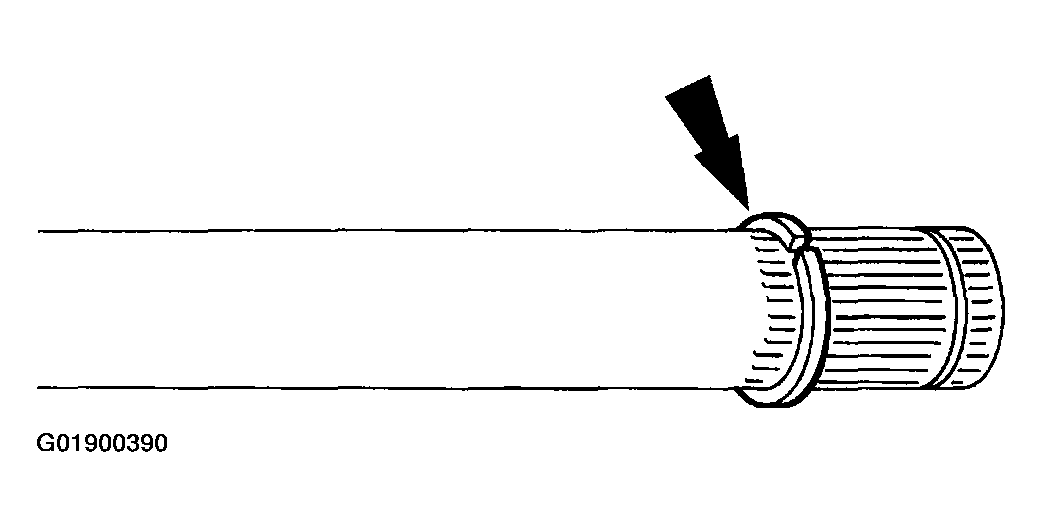

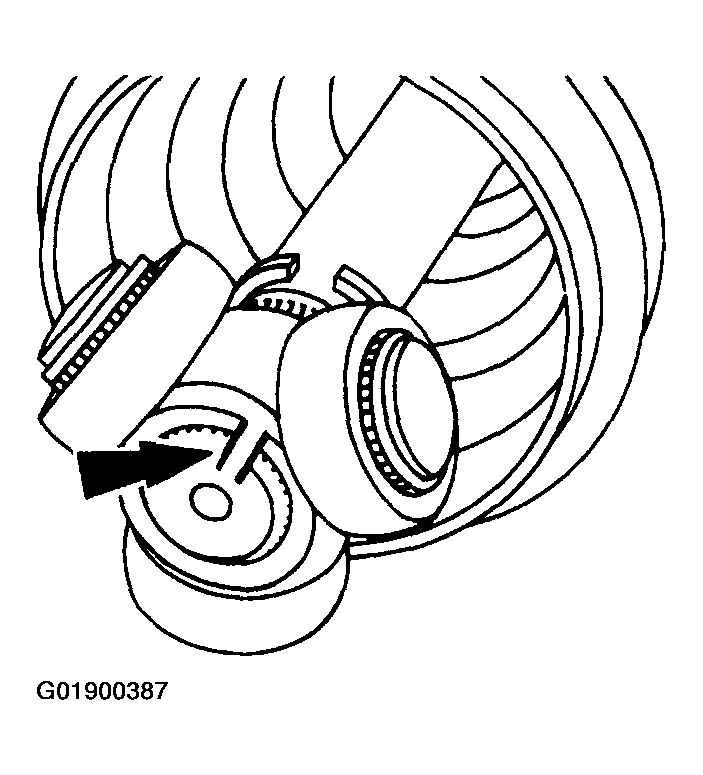

Fig 6: Removing Snap Ring
Courtesy of MAZDA MOTORS CORP.
Remove the snap ring.

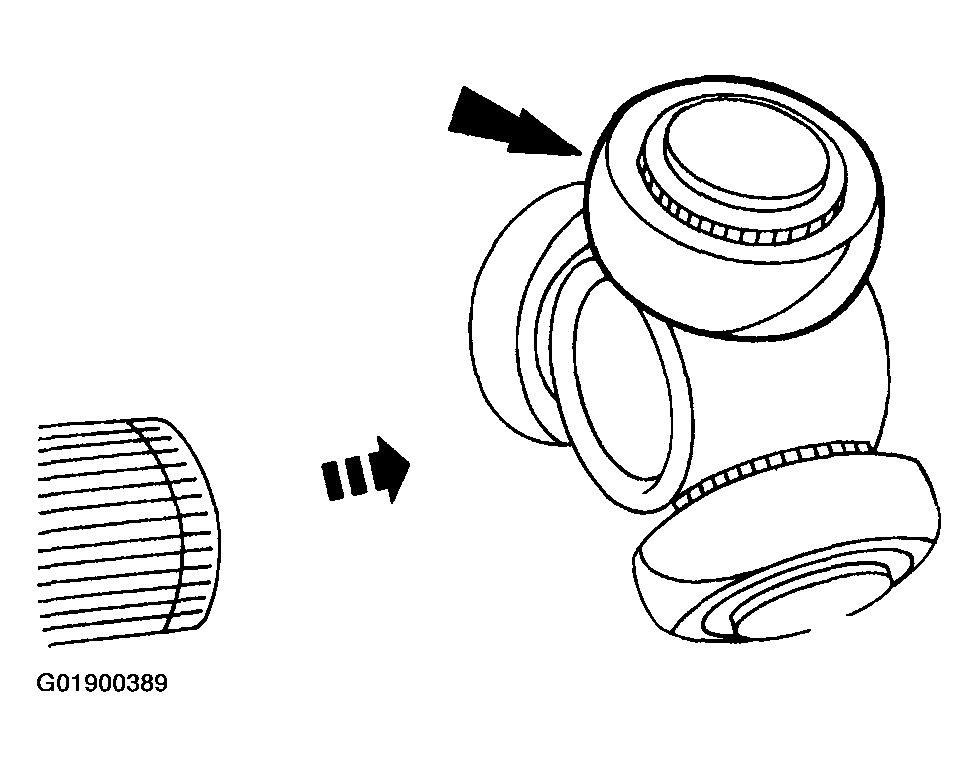

Fig 7: Removing Tripod Joint
Courtesy of MAZDA MOTORS CORP.
Remove the tripod joint.

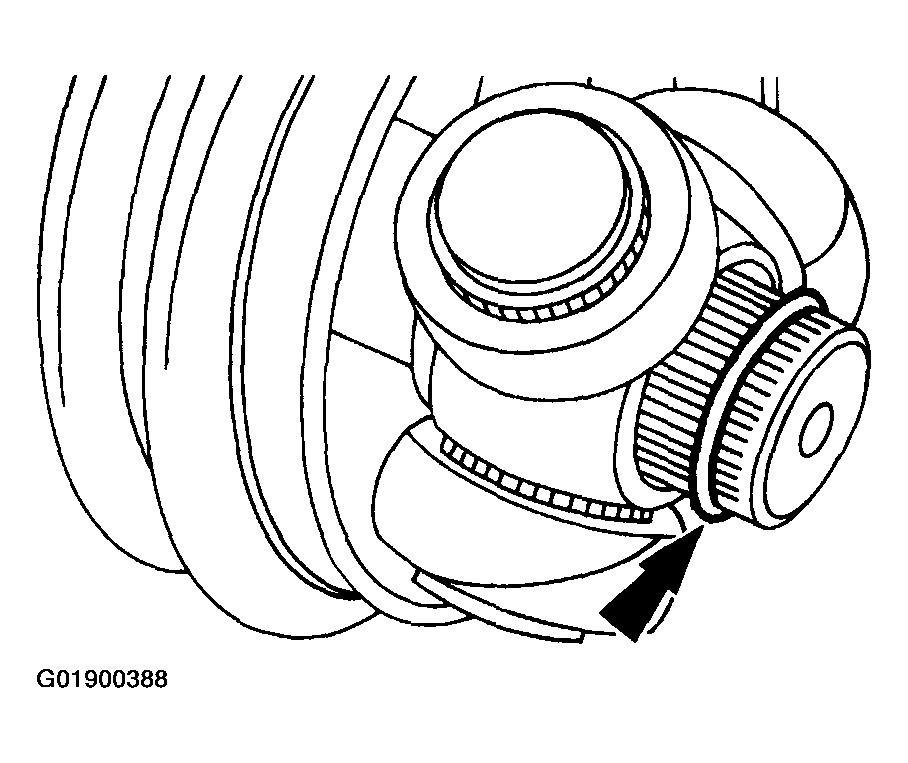

Fig 8: Removing Snap Ring
Courtesy of MAZDA MOTORS CORP.
Remove the snap ring.

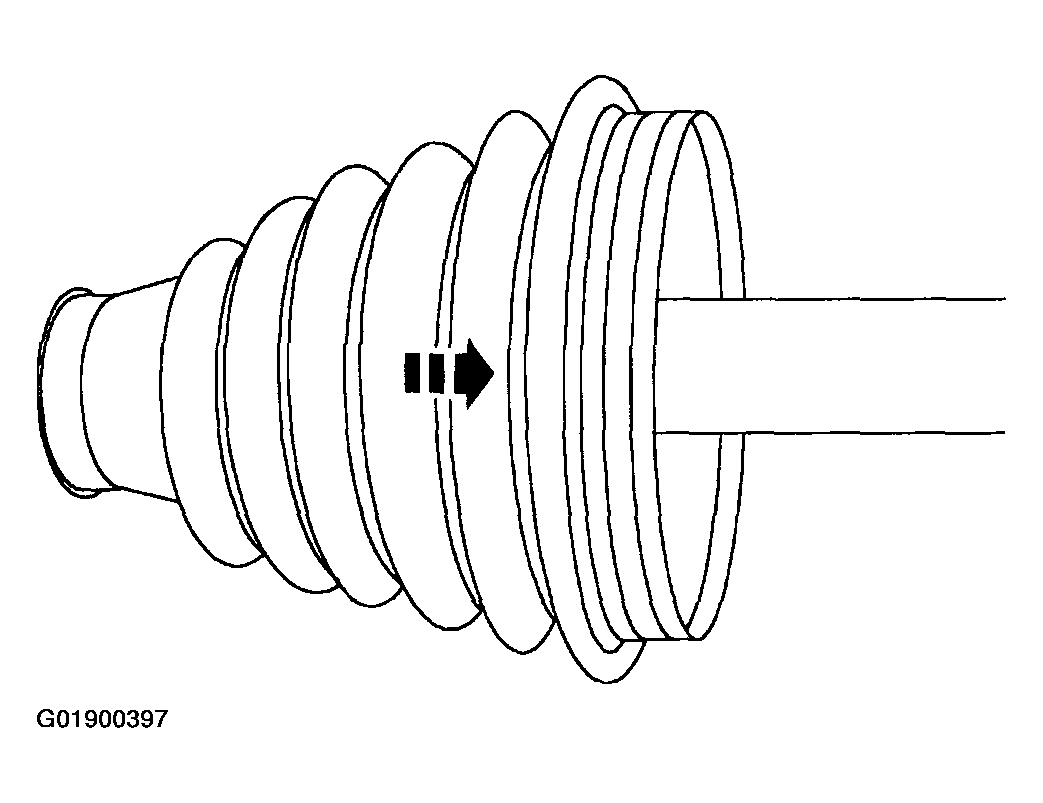

Fig 9: Removing Inboard Halfshaft Boot From Halfshaft
Courtesy of MAZDA MOTORS CORP.
Remove the inboard halfshaft boot from the halfshaft.

Fig 10: Removing Two Outboard Halfshaft Boot Clamps
Courtesy of MAZDA MOTORS CORP.
Remove the two outboard halfshaft boot clamps.

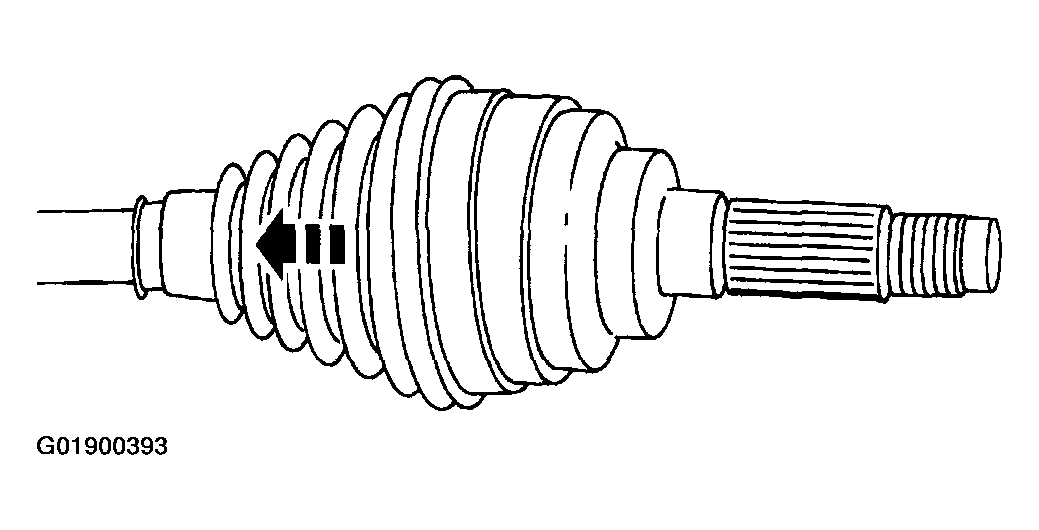

Fig 11: Sliding Outboard Halfshaft Joint Boot Back Out Of Way Exposing Outboard CV Joint
Courtesy of MAZDA MOTORS CORP.
Slide the outboard halfshaft joint boot back out of the way exposing the outboard CV joint.

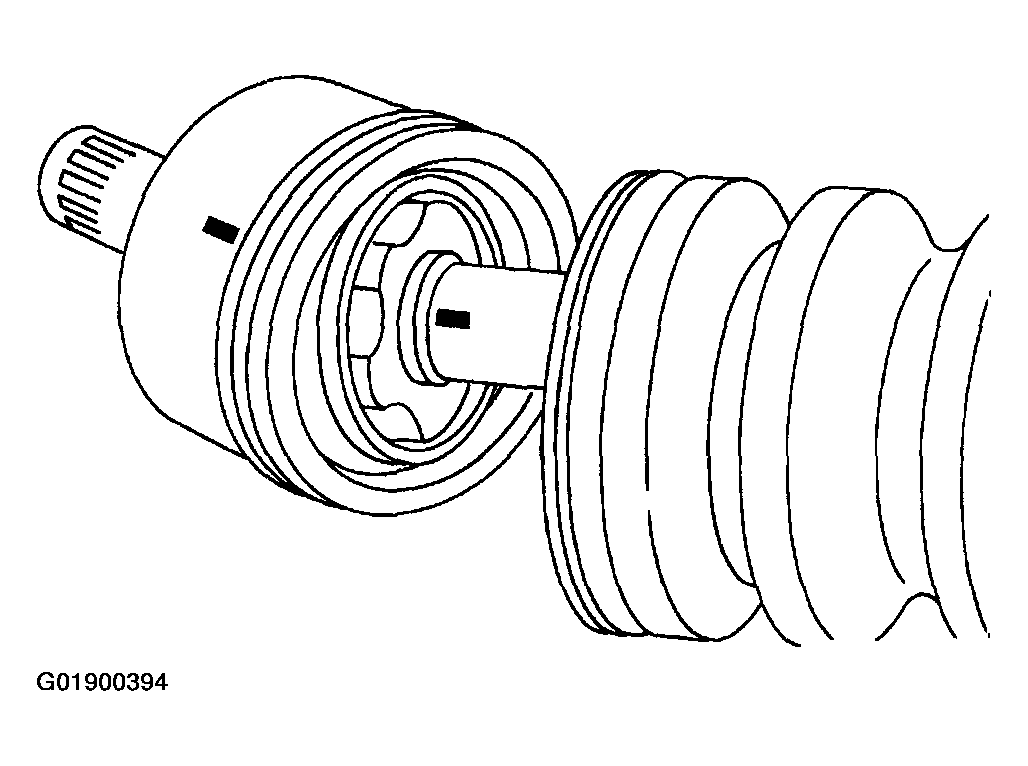

Fig 12: Identifying Outboard CV Joint And Halfshaft Mark Position
Courtesy of MAZDA MOTORS CORP.
If reinstalling the original outboard CV joint, mark the outboard CV joint and halfshaft to make sure of correct installation.

Fig 13: Removing Outboard CV Joint
Courtesy of MAZDA MOTORS CORP.
Use a soft-face hammer to separate the outboard CV joint by gently tapping it off the halfshaft.

Fig 14: Separating Outboard CV Joint By Gently Tapping It Off Halfshaft Using Soft-Face Hammer
Courtesy of MAZDA MOTORS CORP.
Remove the halfshaft bearing retainer circlip and discard.

Fig 15: Removing Halfshaft Bearing Retainer Circlip
Courtesy of MAZDA MOTORS CORP.
Slide the outboard halfshaft boot off of the halfshaft.
