2004 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

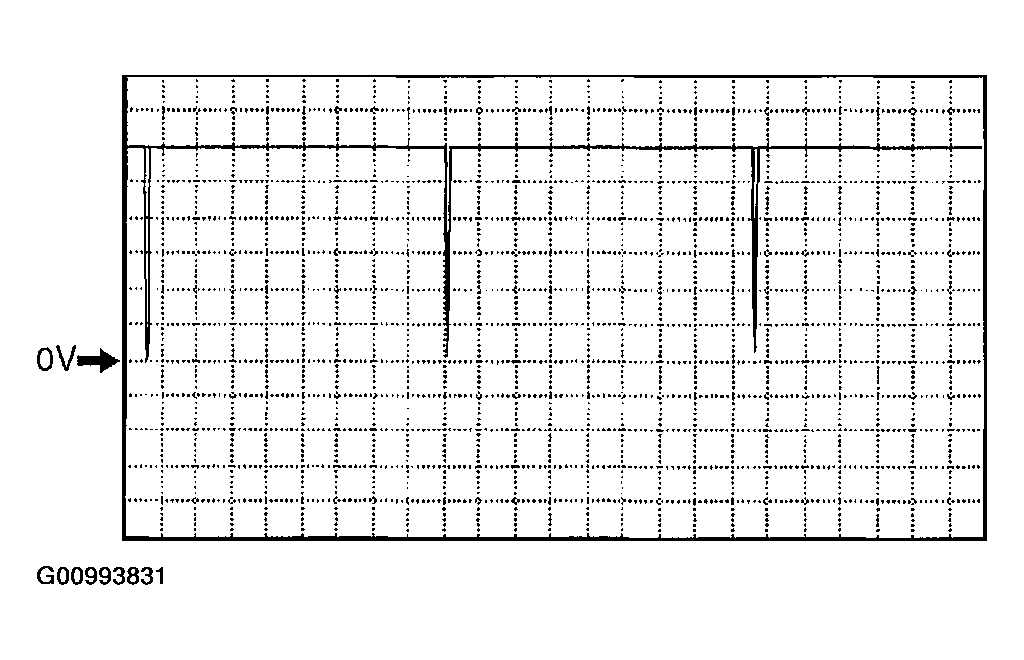

IGT signal
- PCM terminal
- IGT1 26(+)-103(-)
- IGT2 1(+)-103(-)
- IGT3 52(+)-103(-)
- IGT4 27(+)-103(-)
- IGT5 78(+)-103(-)
- IGT6 82(+)-103(-)
- Oscilloscope setting: 2V/DIV (Y), 10ms/DIV (X), DC range
- Vehicle condition: idle after warm up
