2004 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Plastic Fuel Hose Installation Note
- Inspect the plastic fuel hose and fuel distributor sealing surface for damage and deformation, and replace as necessary.
- If the quick release connector O-ring is damaged or has slipped, replace the plastic fuel hose.
- Apply clean engine oil to the O-rings.

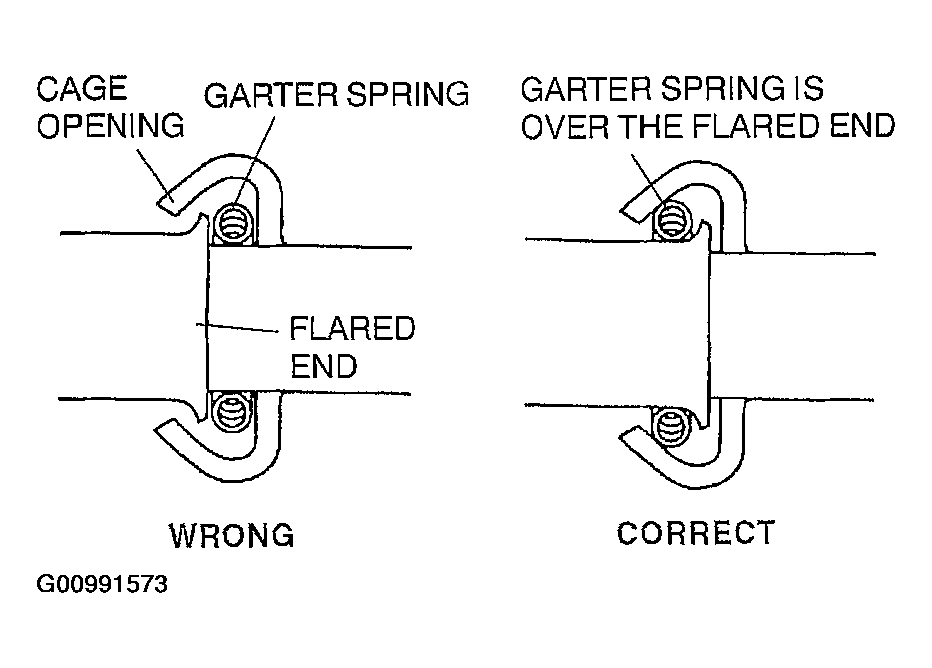

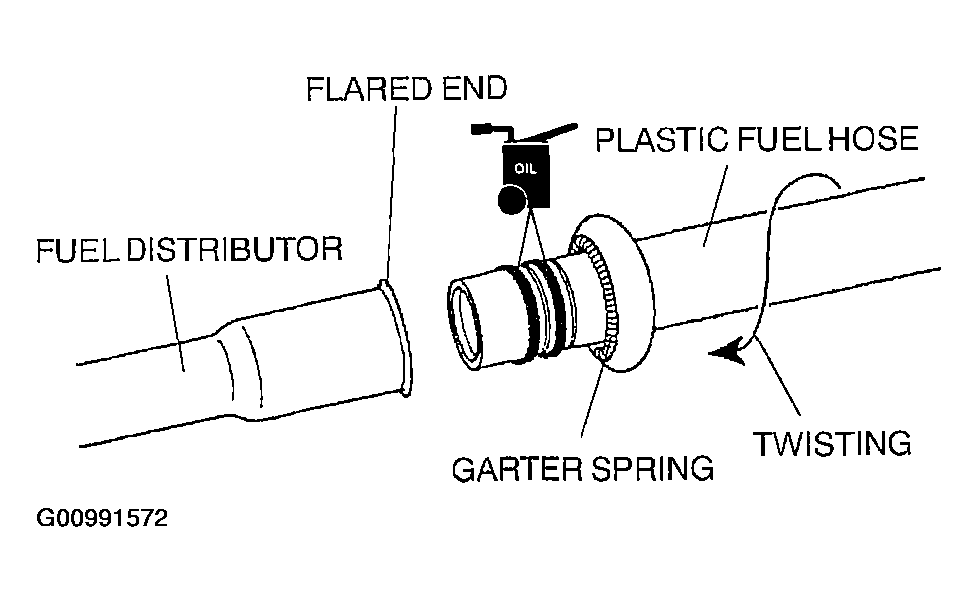

- Connect the plastic fuel hose by twisting it onto the fuel distributor until the garter spring at the plastic fuel hose is over the flared end of the fuel distributor.
- Lightly pull and push the quick release connector by hand and verify that it is installed securely.

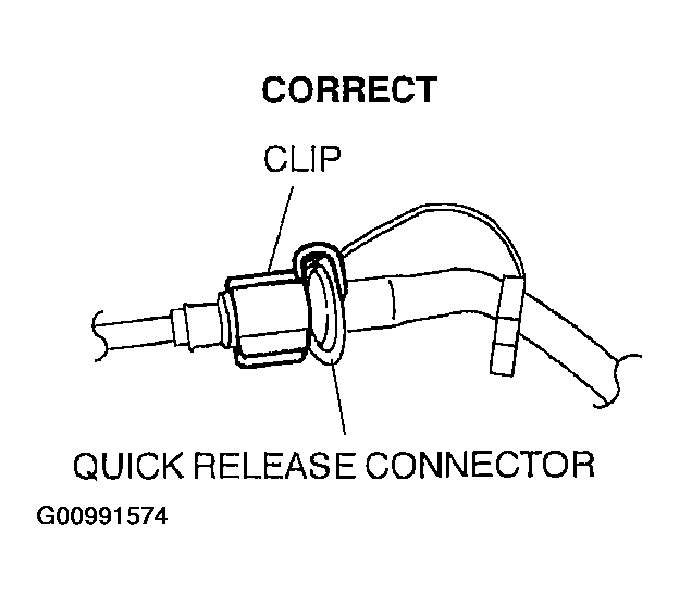

- Install the clip to the quick release connector.
