2004 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

Abs HU/Cm Inspection: Notes

Remove the battery and battery tray.
Connect the SST between the ABS/TCS HU/CM (with TCS) or ABS HU/CM (without TCS) and harness connector with the ignition switch off.
Attach the tester leads to the SST to inspect voltage by referring to the table below.
CAUTION:
- In the event that the vehicle is to be inspected while it is being driven, make sure that the SST harness does not interfere with parts in the engine room.

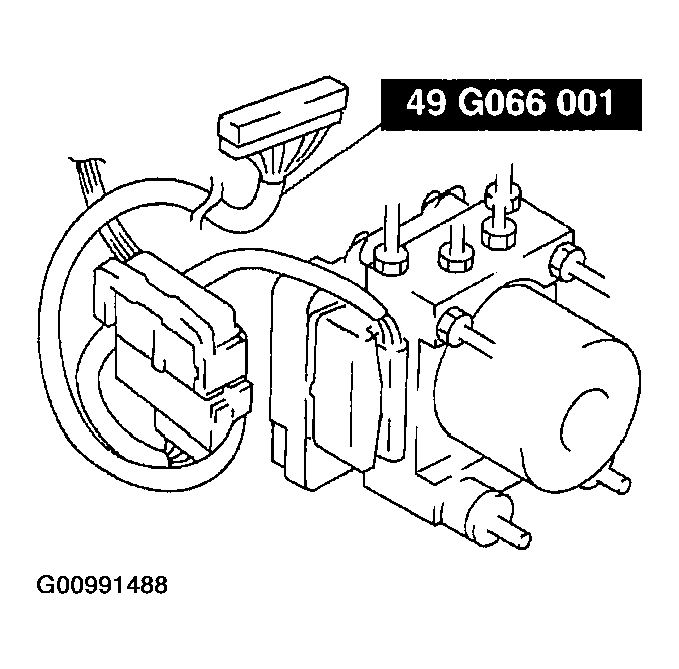

  Fig 1: Connecting Special Service Tool Between ABS/TCS HU/CM
  Courtesy of MAZDA MOTORS CORP.
