2004 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

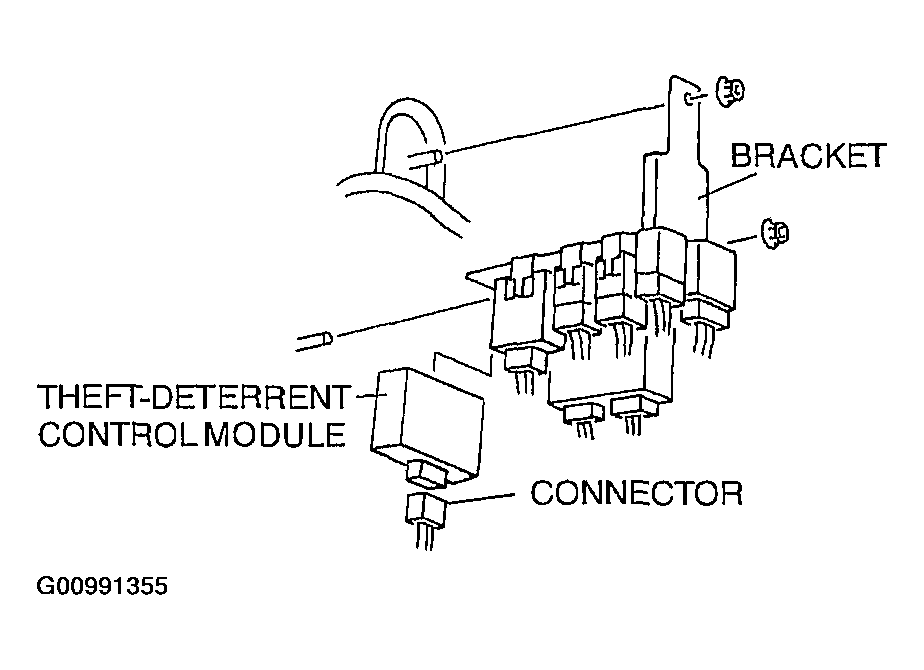

Theft-Deterrent Control Module Removal/Installation
NOTE:
- Because the lock section of the module is damaged easily, do not remove the module from the bracket unless replacement is necessary. Always perform an inspection of the theft-deterrent control module before removal.
- Disconnect the negative battery cable.
- Remove the bracket.
- Disconnect the theft-deterrent control module connector.
- Remove the theft-deterrent control module by prying the lock section of the side part with a flathead screwdriver.
- Install in the reverse order of removal.
