2004 Mazda B4000 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Swirl Control Solenoid Removal/Installation - 2.3L
- Disconnect the negative battery cable. See BATTERY DISCONNECT .

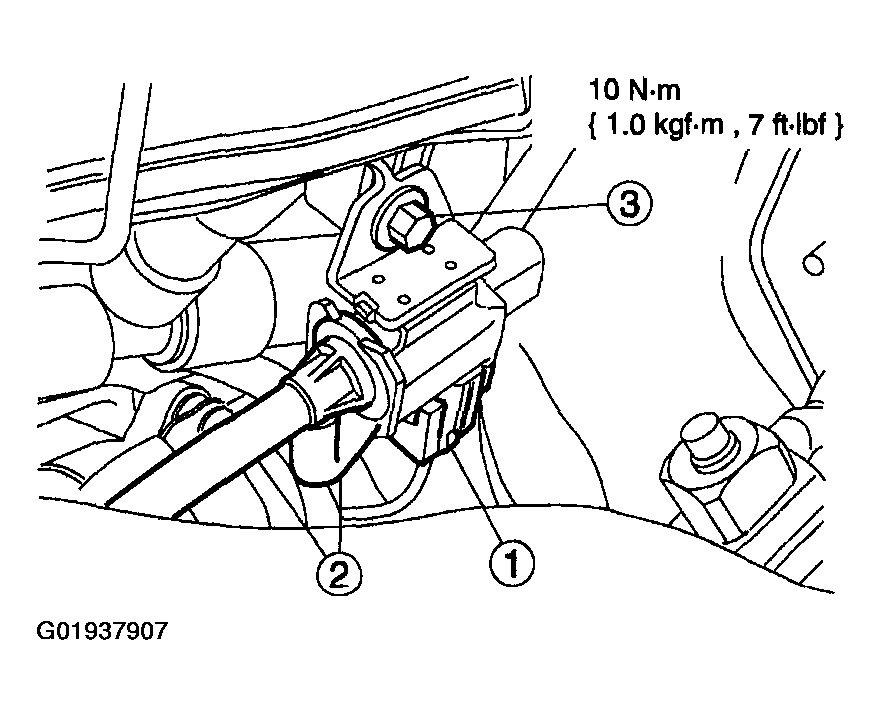

- Remove the intake manifold runner control actuator.
- Disconnect the electrical connector.
- Disconnect the vacuum lines.
- Remove the bolt and the IMRC actuator.
- To install, reverse the removal procedure.
