Compression Test - Results

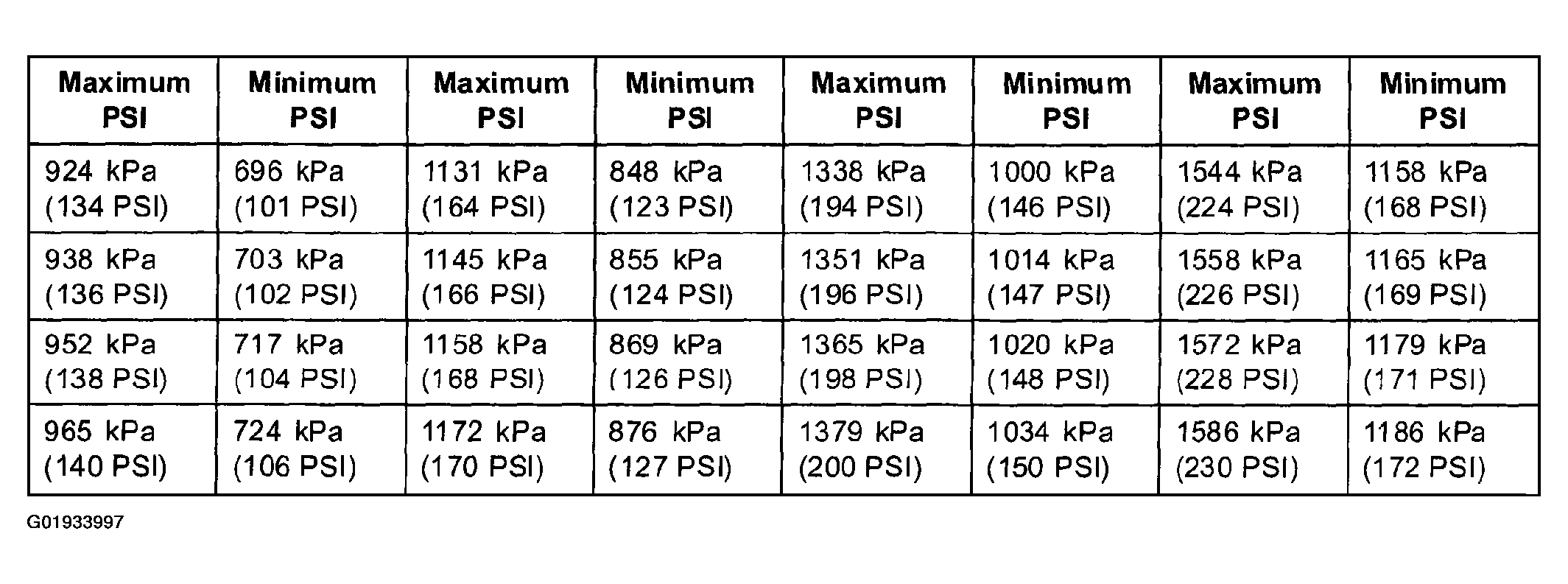

The indicated compression pressures are considered within specification if the lowest reading cylinder is at least 75 percent of the highest reading. The following Compression Pressure Limit Chart shows acceptable pressure ranges. Use the highest compression reading obtained from the compression test and verify that the lowest compression reading is within the range shown in the chart. See the Compression Pressure Limit Chart.
Check the following for oil leaks:
