2004 Mazda B2300 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Removal/Installation

CAUTION:

Sensing elements located in the air flow bypass are not to be tampered with.

Disconnect negative battery cable.
Disconnect the mass air flow (MAF) sensor electrical connector.

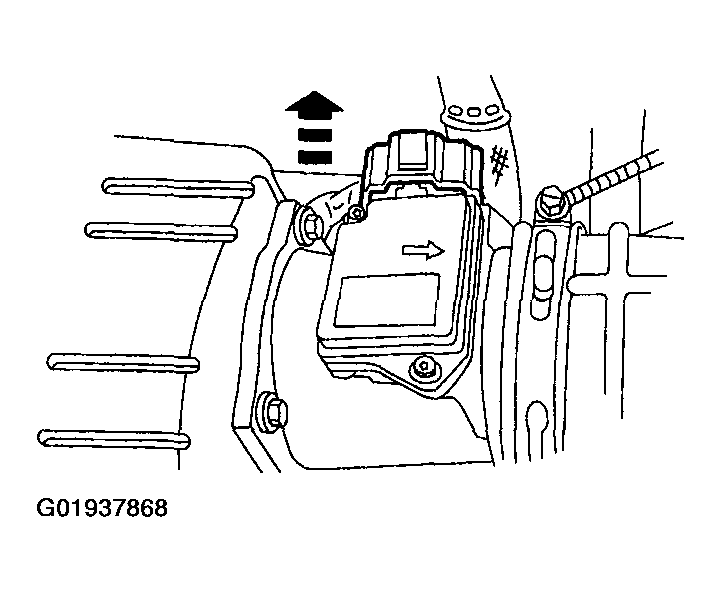

Fig 1: Disconnecting Mass Air Flow (MAF) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the air cleaner outlet tube from the MAF sensor.

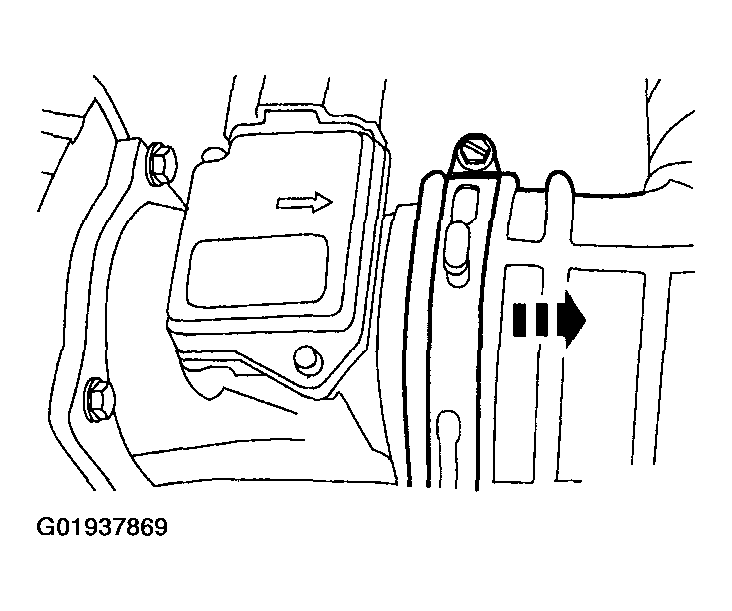

Fig 2: Disconnecting Air Cleaner Outlet Tube From MAF Sensor
Courtesy of MAZDA MOTORS CORP.
Remove the four bolts and the MAF sensor.

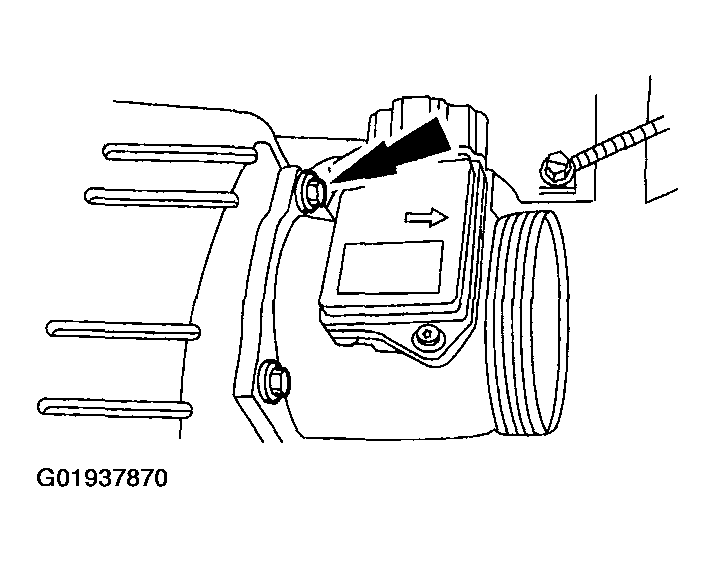

Fig 3: Removing MAF Sensor Bolts
Courtesy of MAZDA MOTORS CORP.
