2004 Mazda B2300 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Idle Air Control (IAC) Valve Removal/Installation - 2.3L

Disconnect the negative battery cable. See BATTERY DISCONNECT .
Disconnect the idle air control (IAC) valve electrical connector.

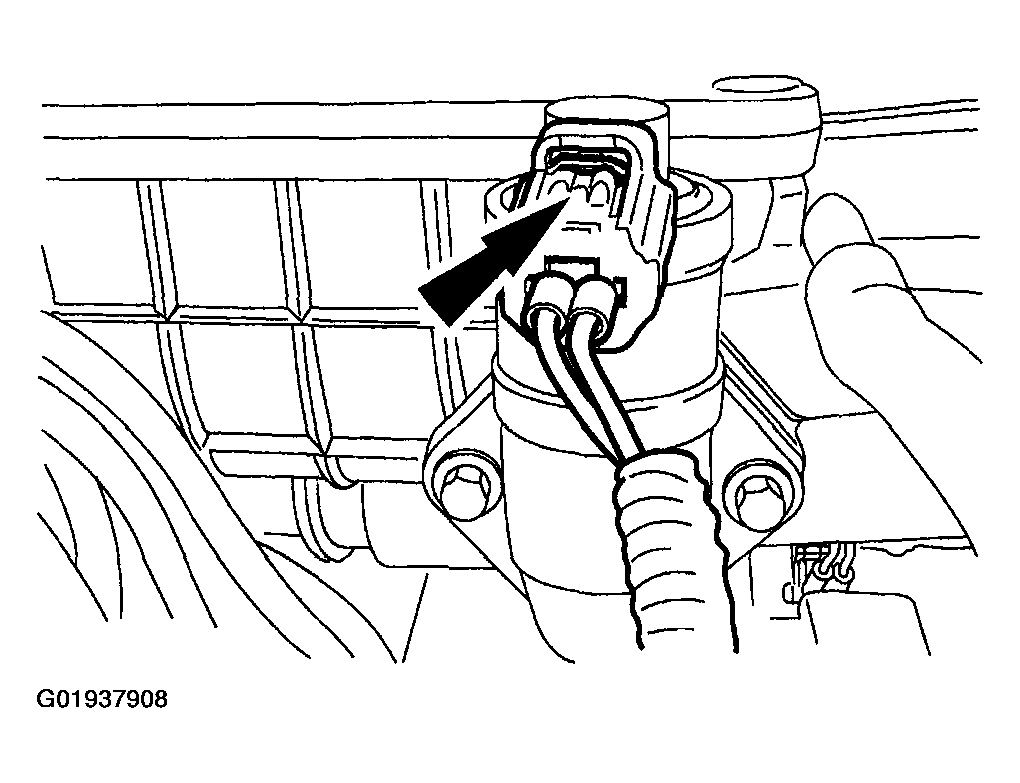

Fig 1: Disconnecting Idle Air Control (IAC) Valve Electrical Connector - 2.3L
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the IAC valve and discard the gasket.

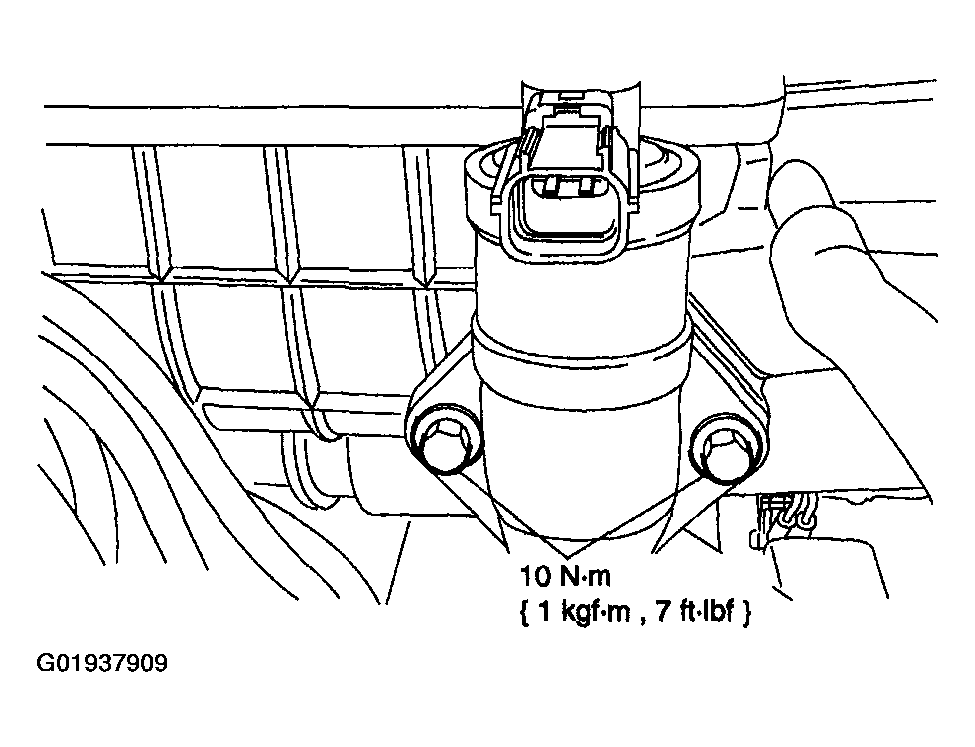

Fig 2: Installing Idle Air Control Valve - 2.3L
Courtesy of MAZDA MOTORS CORP.
