2004 Mazda B2300 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Engine Coolant Temperature Sensor Removal/Installation
- Disconnect negative battery cable.
- Partially drain the cooling system. See ENGINE COOLANT REPLACEMENT - 3.0L for 3.0L or see ENGINE COOLANT REPLACEMENT - 4.0L for 4.0L.
- Disconnect engine coolant temperature (ECT) sensor connector.NOTE:
- The 2.3L engine has a CHT sensor. See CYLINDER HEAD TEMPERATURE (CHT) SENSOR REMOVAL/INSTALLATION - 2.3L .

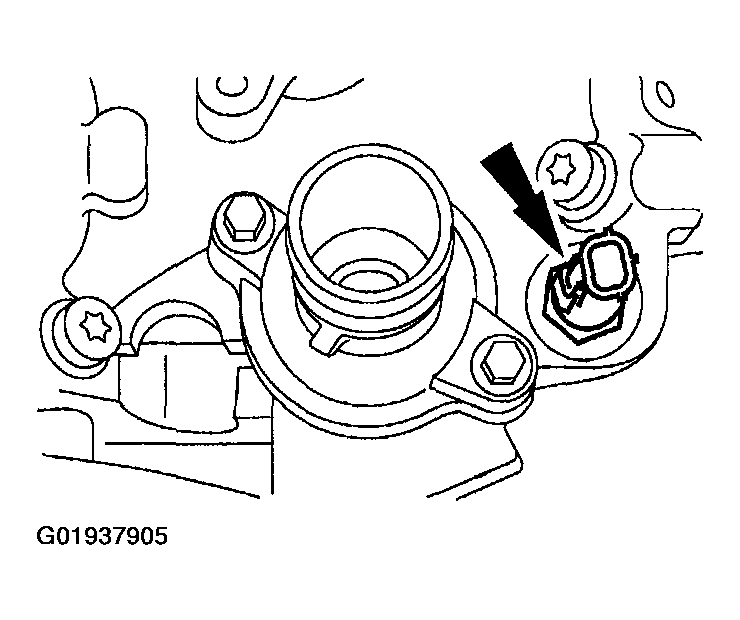

- Remove the ECT sensor.
