2004 Mazda B2300 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Crankshaft Position (CKP) Sensor Removal/Installation - 2.3L: Removal
- Disconnect the negative battery cable.
- Raise and support the vehicle.

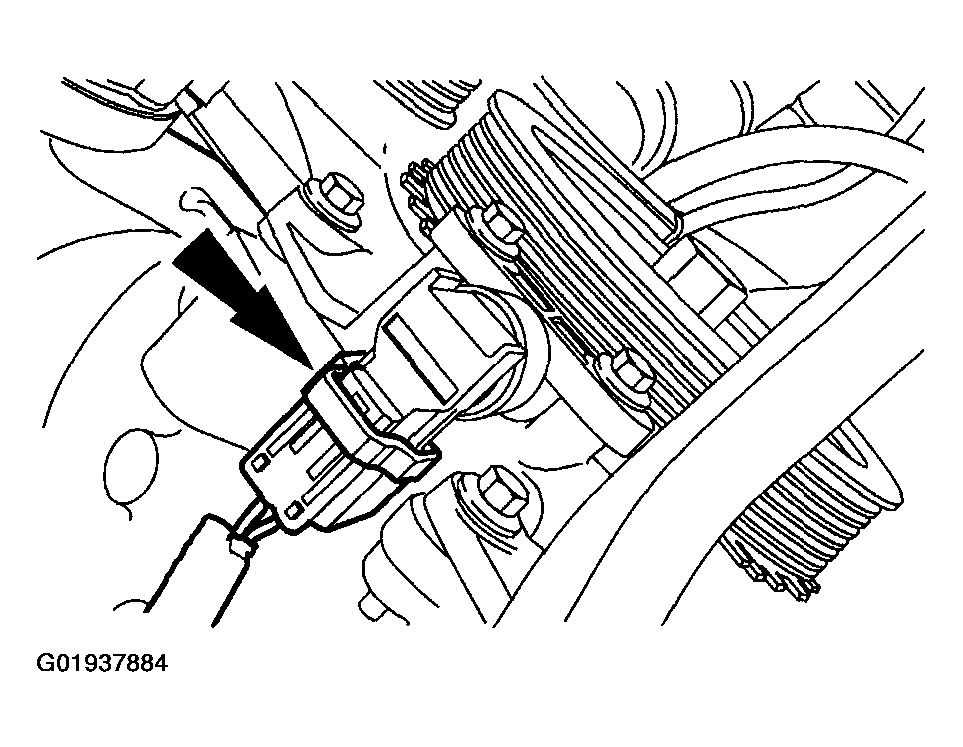

- Disconnect the crankshaft position (CKP) sensor electrical connector.

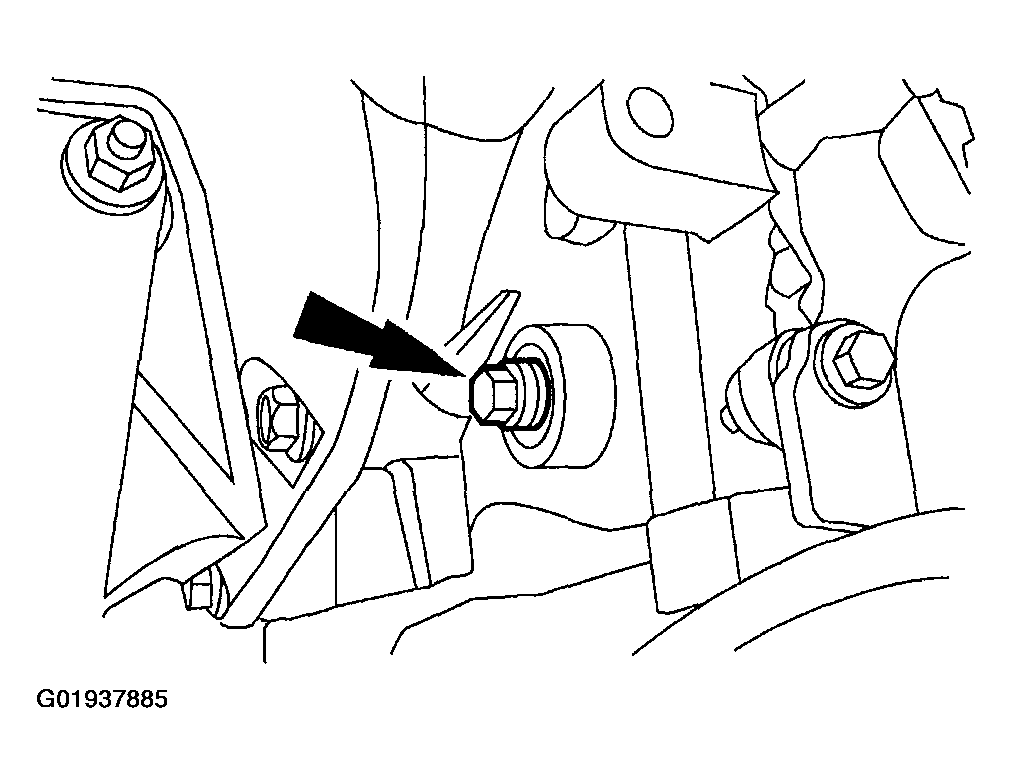

- Remove the plug for the Crankshaft Timing Peg.

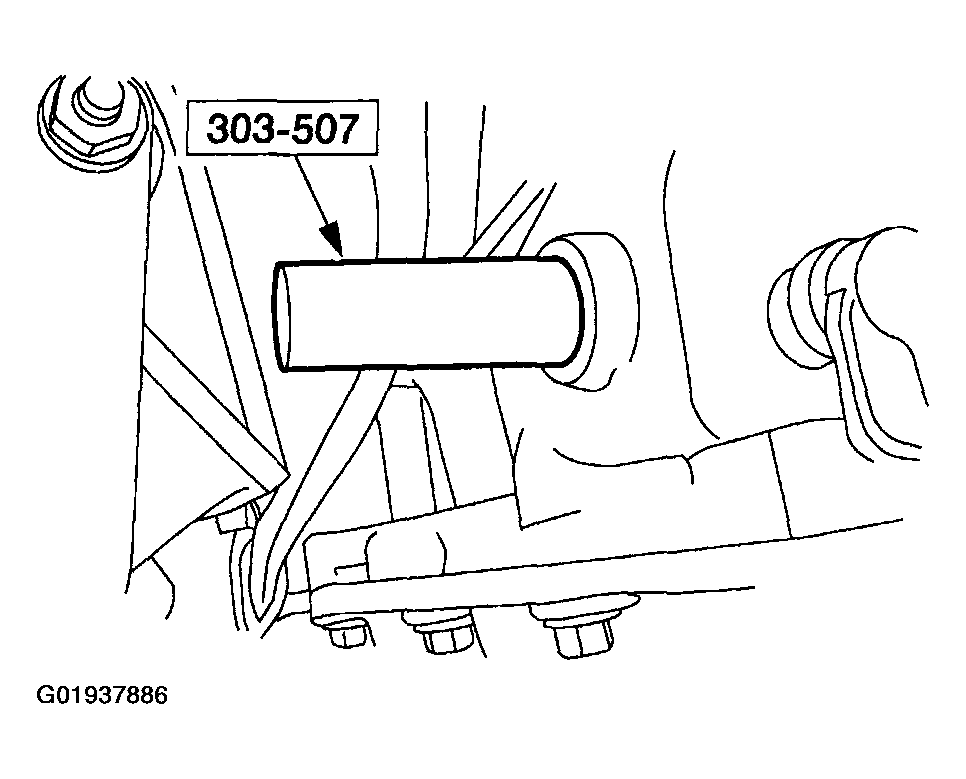

- Install the special tool and turn the crankshaft pulley bolt to position the number one cylinder at top dead center.

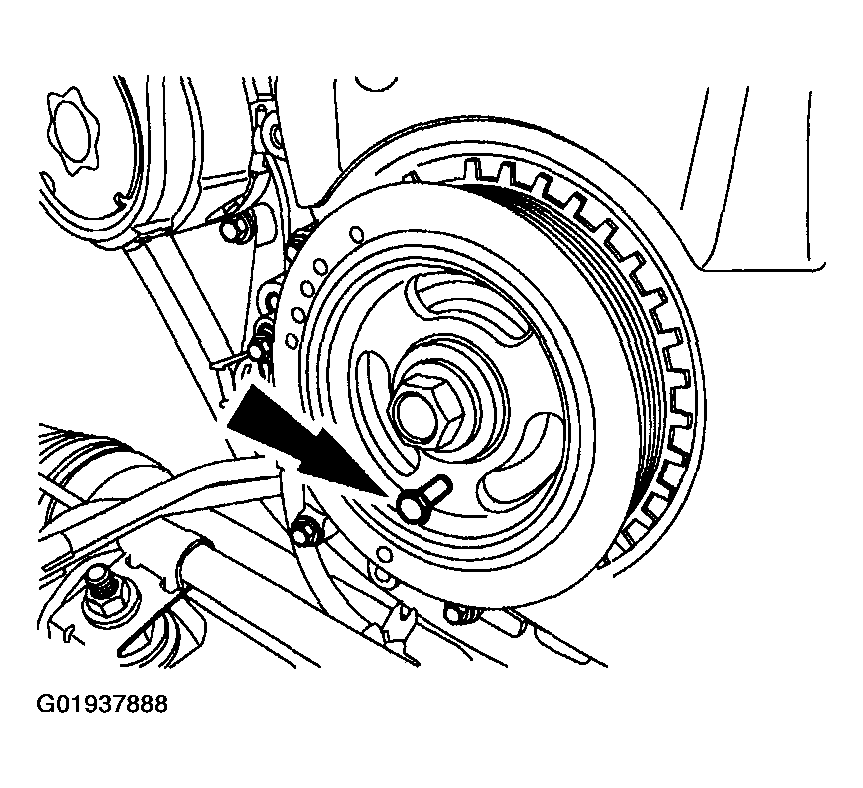

- Install the M6 bolt (1F2012-428).

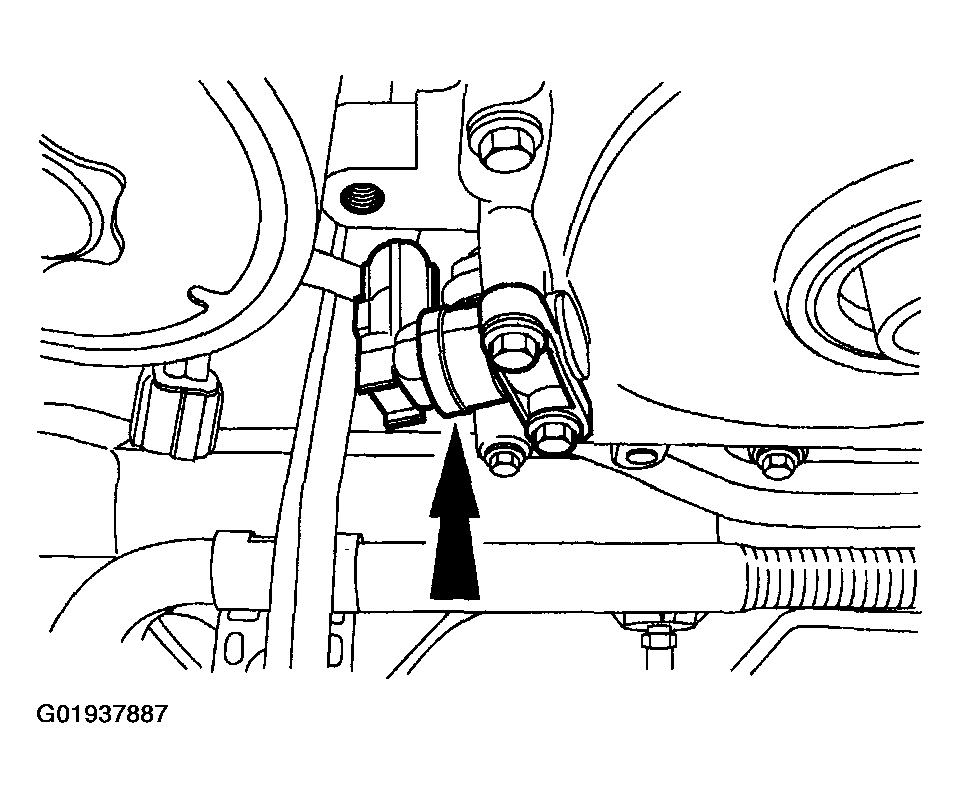

- Remove the CKP.
- Install an M6 bolt.
