2004 Mazda B2300 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Crankshaft Position (CKP) Sensor Removal/Installation - 2.3L: Installation

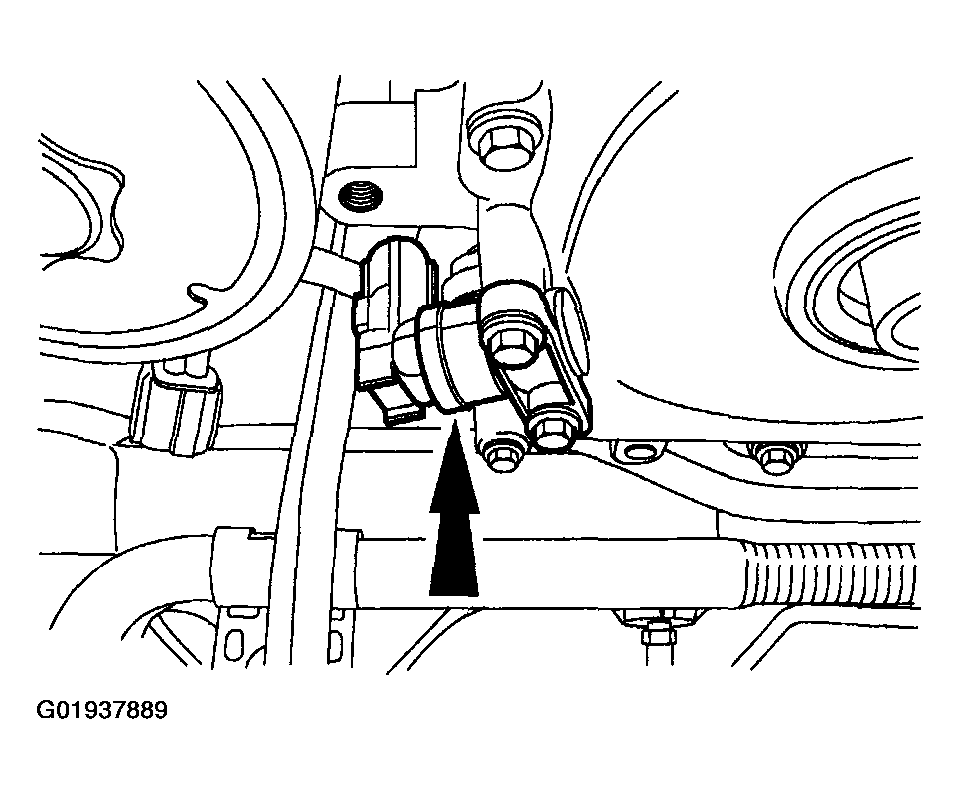

Fig 1: Installing CKP - 2.3L
G01937889Courtesy of MAZDA MOTORS CORP.
  1. Install a new CKP, but do not tighten the bolts at this time.

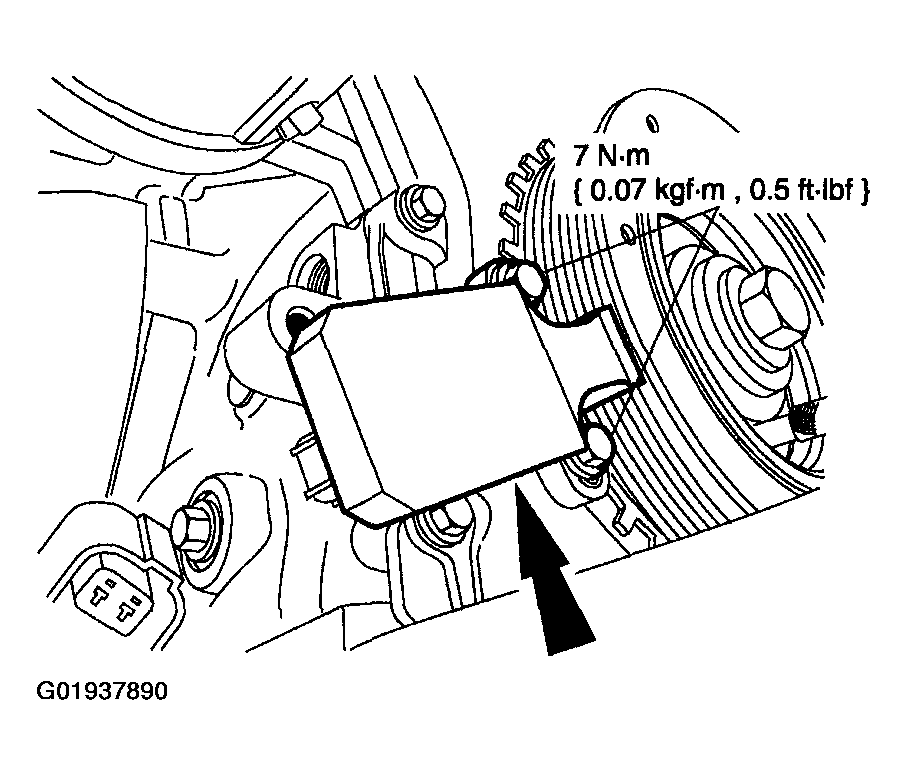

    Fig 2: Adjusting CKP With Crankshaft Position Sensor Alignment Jig And Tighten Bolts - 2.3L
    G01937890Courtesy of MAZDA MOTORS CORP.
  2. Adjust the CKP with the Crankshaft Position Sensor Alignment Jig and tighten the bolts.

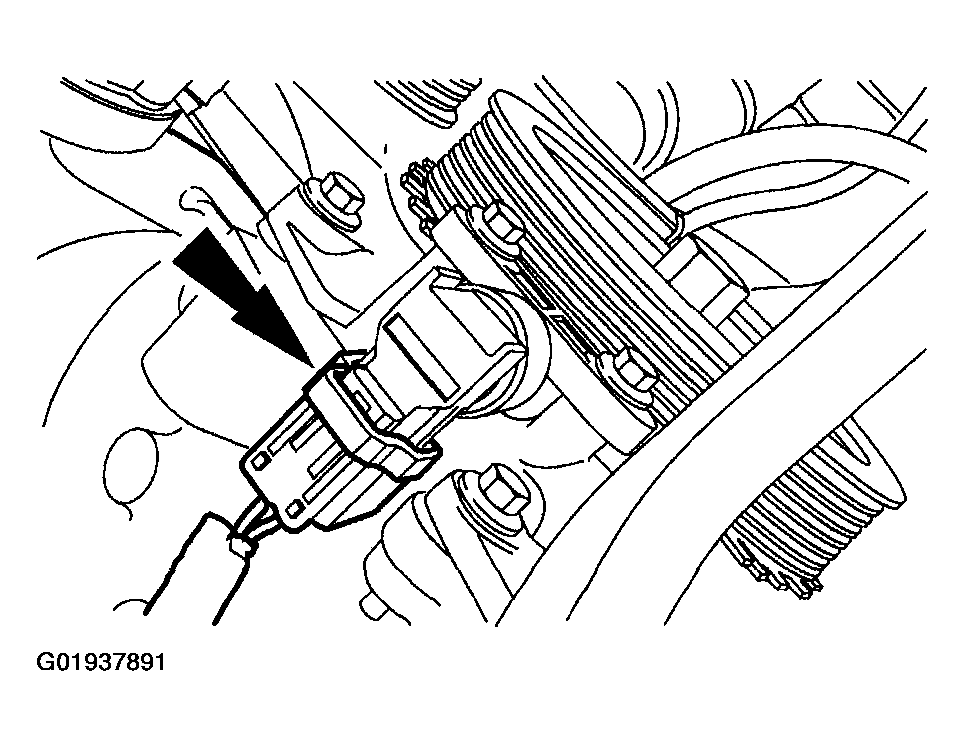

    Fig 3: Connecting CKP Electrical Connector - 2.3L
    G01937891Courtesy of MAZDA MOTORS CORP.
  3. Connect the CKP electrical connector.

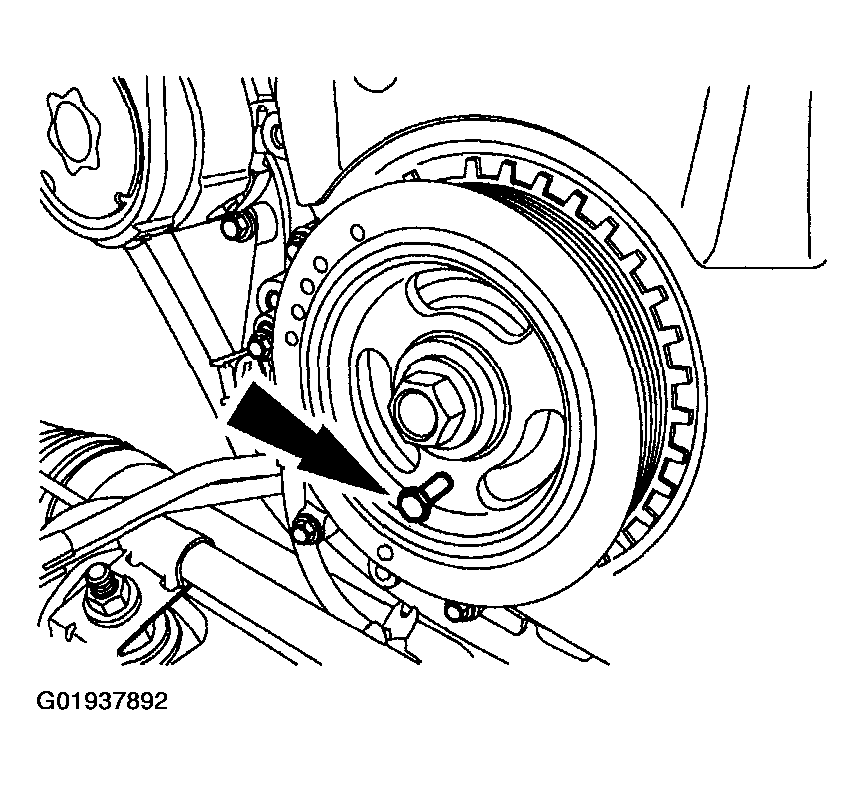

    Fig 4: Removing M6 Bolt - 2.3L
    G01937892Courtesy of MAZDA MOTORS CORP.
  4. Remove the M6 bolt.

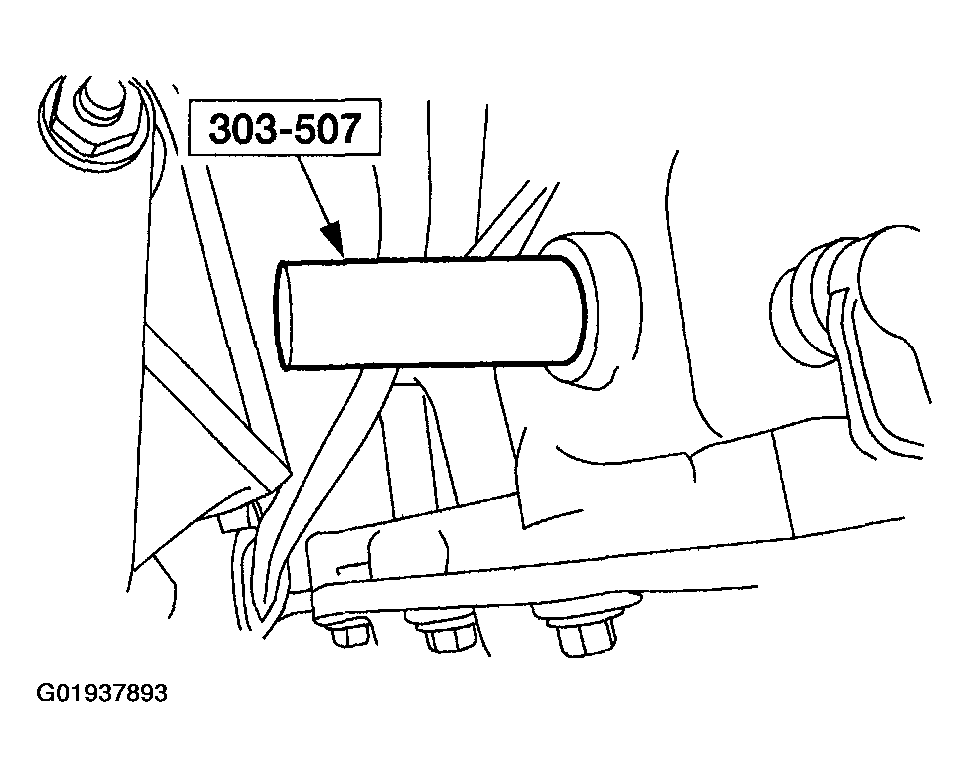

    Fig 5: Removing Special Tool - 2.3L
    G01937893Courtesy of MAZDA MOTORS CORP.
  5. Remove the special tool.

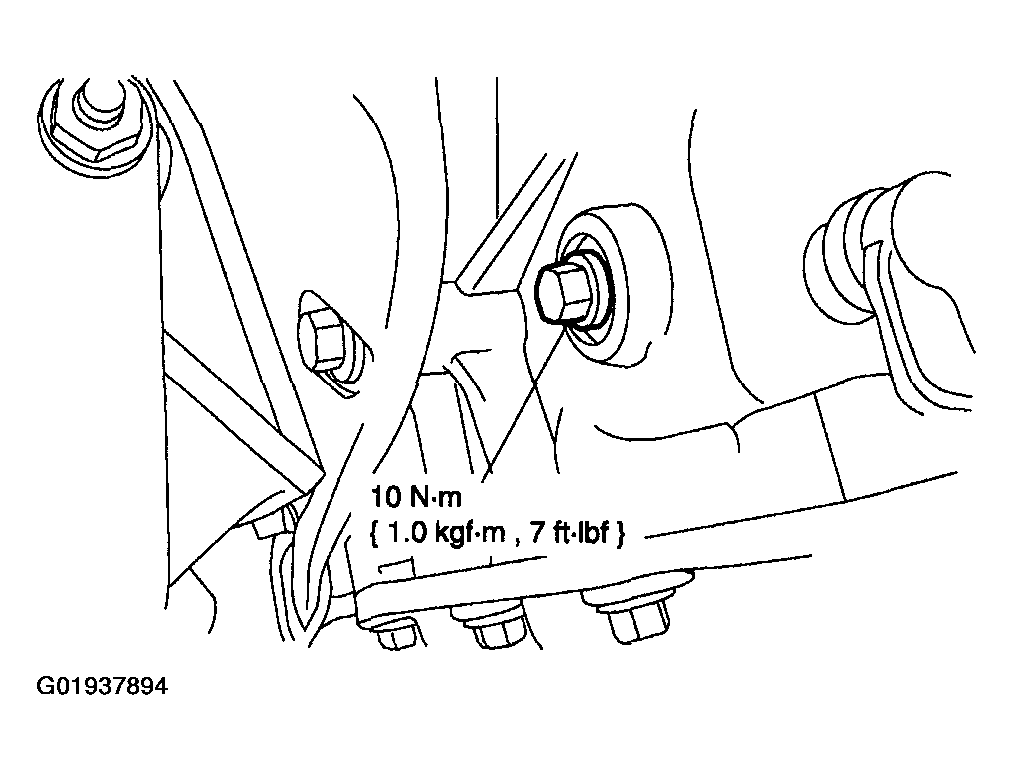

    Fig 6: Installing Plug For Crankshaft Timing Peg - 2.3L
    G01937894Courtesy of MAZDA MOTORS CORP.
  6. Install the plug for the crankshaft timing peg.

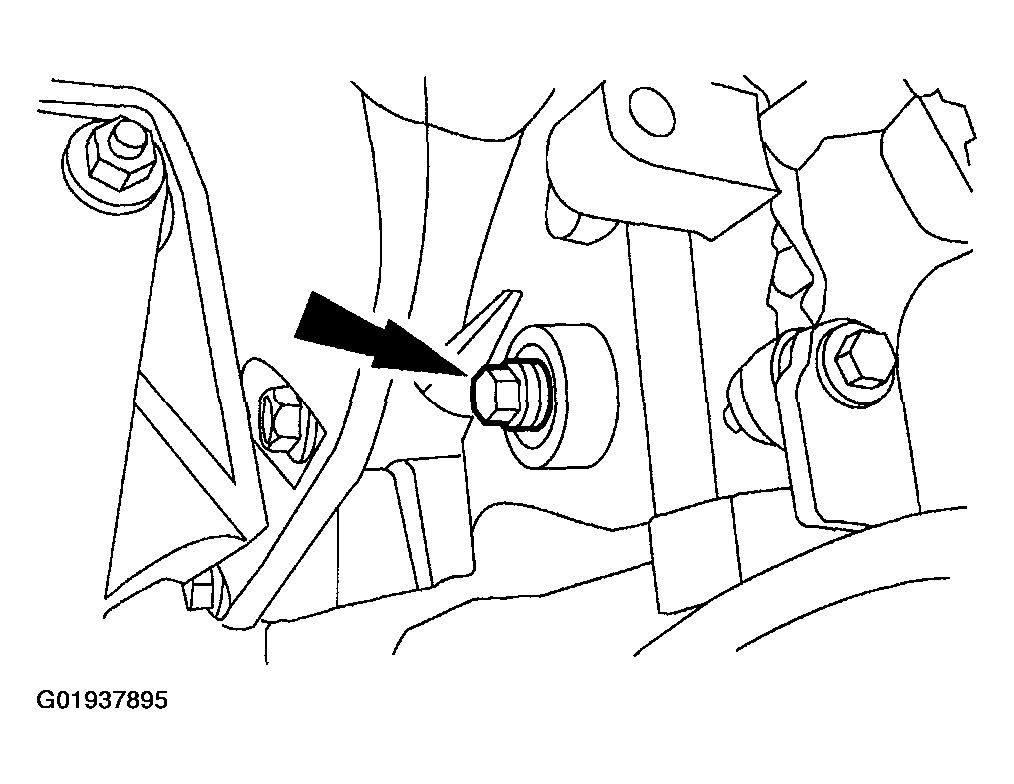

    Fig 7: Installing Bolt - 2.3L
    G01937895Courtesy of MAZDA MOTORS CORP.
