Oscilloscope Patterns and Waveforms

Inspection Using An Oscilloscope (Reference)




IGT1, IGT2 control signals
PCM terminals
- IGT1 (No.1 and No.4): 1A (+) - 1D (-)
- IGT2 (No.2 and No.3): 1B (+)- 1C (-)

Oscilloscope setting
- 4 V/DIV (Y), 0.01 ms/DIV (X), DC range

Vehicle condition
- Idle after warm up (engine speed approx. 700 rpm, no load, P/S off, A/C off).




Generator output voltage signal PCM terminals
- 1AA (+) - 2AC (-)

Oscilloscope setting
- 2 V/DIV (Y), 2 ms/DIV (X), DC range

Vehicle condition
- Idle after warm up (engine speed approx. 700 rpm, no load, P/S off, A/C off)




HO2S (front) signal
PCM terminals
- 1AB (+) - 2H (-)

Oscilloscope setting
- 0.1 V/DIV (Y), 400 ms/DIV (X), DC range

Vehicle condition
- Idle after warm up (engine speed approx. 700 rpm, no load, P/S off, A/C off)




Generator field coil control signal PCM terminals
- 1AD (+) - 1C (-)

Oscilloscope setting
- 0.5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition
- Idle after warm up (engine speed approx. 700 rpm, no load, P/S off, A/C off)

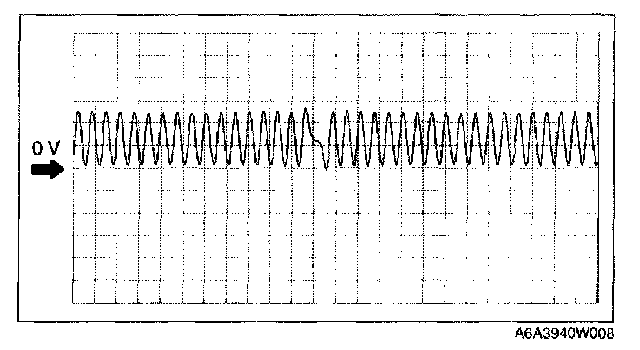

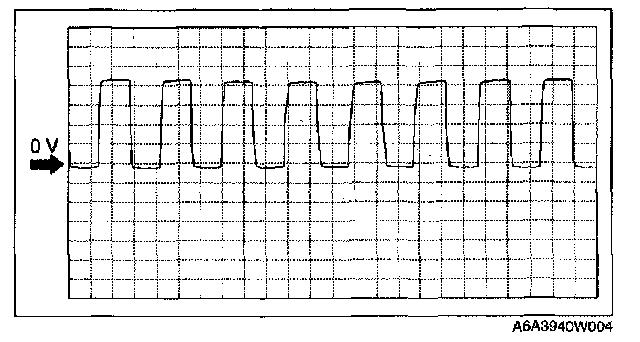

CKP sensor signal
(+)
PCM terminals
- 2D (+) - 2H (-)

Oscilloscope setting
- 2 V/DIV (Y), 4 ms/DIV (X), DC range

Vehicle condition
- Idle after warm up (engine speed approx. 700 rpm, no load P/S off, A/C off)




(-)
PCM terminals
- 2G (+) - 2H (-)

Oscilloscope setting
- 2 V/DIV (Y), 4 ms/DIV (X), DC range

Vehicle condition
- Idle after warm up (engine speed approx 700 rpm, no load, P/S off, A/C off)




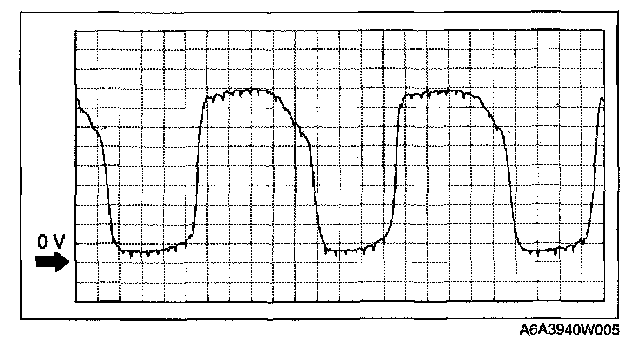

VSS signal
PCM terminals
- 2I (+) - 2AC (-)

Oscilloscope setting
- 1 V/DIV (Y), 10 ms/DIV (X), DC range

Vehicle condition
- Drive the vehicle with approx 10 km/h {6.2 mph}




CMP sensor signal
(+)
PCM terminals
- 2J (+) - 2H (-)

Oscilloscope setting
- 1 V/DIV (Y), 10 ms/DIV (X), DC range

Vehicle condition
- Idle after warm up (engine speed approx. 700 rpm, no load, P/S off, A/C off)




(-)
PCM terminals
- 2M (+) - 2H (-)

Oscilloscope setting
- 1 V/DIV (Y), 10 ms/DIV (X), DC range

Vehicle condition
- Idle after warm up (engine speed approx. 700 rpm, no load, P/S off, A/C off)




HO2S (front) heater control signal PCM terminals
- 4A (+) - 1C (-)

Oscilloscope setting
- 4 V/DIV (Y), 200 ms/DIV (X), DC range

Vehicle condition
- Idle after warm up (engine speed approx. 700 rpm, no load, P/S off, A/C off)




OCV control signal
PCM terminals
- 4M (+) - 1C (-)

Oscilloscope setting
- 2 V/DIV (Y), 0.8 ms/DIV (X), DC range

Vehicle condition
- Idle after warm up (engine speed approx. 700 rpm, no load, P/S off, A/C off)




Purge control signal PCM terminals
- 4U (+) - 1C (-)

Oscilloscope setting
- 2 V/DIV (Y), 10 ms/DIV (X), DC range

Vehicle condition
- Idle after warm up (engine speed approx 700 rpm, no load, P/S off, A/C off)




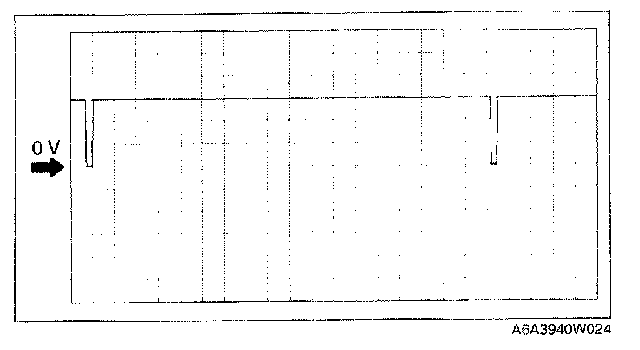

Fuel injection control
PCM terminals
- Fuel Injection No.1: 4Z (+) - 1C (-)
- Fuel Injection No.2: 4W (+) - 1C (-)
- Fuel Injection No.3: 4AD (+) - 1C (-)
- Fuel Injection No.4: 4AA (+) - 1C (-)

Oscilloscope setting
- 4 V/DIV (Y) 10 ms/DIV (X), DC range

Vehicle condition
- Idle after warm up (engine speed approx 700 rpm no load, P/S off, A/C off)
