2004 Mazda 6 L4-2.3LFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Testing and Inspection
MASS AIR FLOW (MAP) SENSOR INSPECTION
Visual Inspection
NOTE: Perform the following inspection only when directed.
1. Visually inspect for the following on the MAF sensor.
- Damage
- Cracks
- Bent terminals
- Terminal rust
- If any of the above are found, replace the MAP sensor.

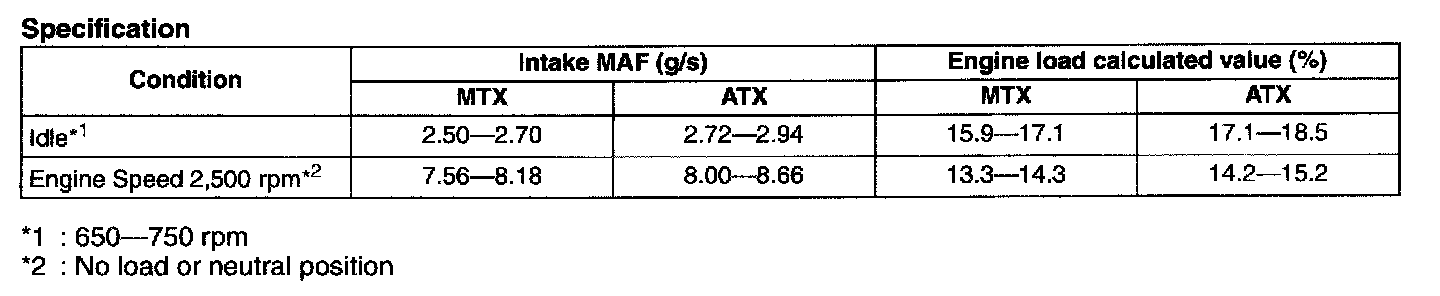

- If the MAF PID value is out of specification, carry out the "Circuit Open/Short Inspection"
Circuit Open/Short Inspection
1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION.)
2. Disconnect the MAF sensor connector.
3. Inspect the following wiring harnesses for open or short circuit. (Continuity check)
Open circuit
- If there is no continuity, there is an open circuit Repair or replace the wiring harness
- MAF sensor terminal A (harness-side) and main relay terminal C (harness-side)
- MAF sensor terminal B (harness-side) and PCM terminal 2AC (harness-side)
- MAF sensor terminal C (harness-side) and PCM terminal 1 P (harness-side)
Short circuit
- If there is continuity, there is a short circuit Repair or replace the wiring harness
- MAF sensor terminal A (harness-side) and body GND
- MAF sensor terminal C (harness-side) and power supply
- MAF sensor terminal C (harness-side) and body GND
- MAF sensor terminal B (harness-side) and power supply
Visual Inspection
NOTE: Perform the following inspection only when directed.
1. Visually inspect for the following on the MAF sensor.
- Damage
- Cracks
- Bent terminals
- Terminal rust
- If any of the above are found, replace the MAP sensor.
- If the MAF PID value is out of specification, carry out the "Circuit Open/Short Inspection"
Circuit Open/Short Inspection
1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION.)
2. Disconnect the MAF sensor connector.
3. Inspect the following wiring harnesses for open or short circuit. (Continuity check)
Open circuit
- If there is no continuity, there is an open circuit Repair or replace the wiring harness
- MAF sensor terminal A (harness-side) and main relay terminal C (harness-side)
- MAF sensor terminal B (harness-side) and PCM terminal 2AC (harness-side)
- MAF sensor terminal C (harness-side) and PCM terminal 1 P (harness-side)
Short circuit
- If there is continuity, there is a short circuit Repair or replace the wiring harness
- MAF sensor terminal A (harness-side) and body GND
- MAF sensor terminal C (harness-side) and power supply
- MAF sensor terminal C (harness-side) and body GND
- MAF sensor terminal B (harness-side) and power supply
