2004 Mazda 3 i, AutomaticFACTORY OEM SERVICE PROCEDURE

Open circuit

If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
- MAP sensor terminal A and PCM terminal 2AA
- MAP sensor terminal D and PCM terminal 2AL
- MAP sensor terminal C and PCM terminal 2W

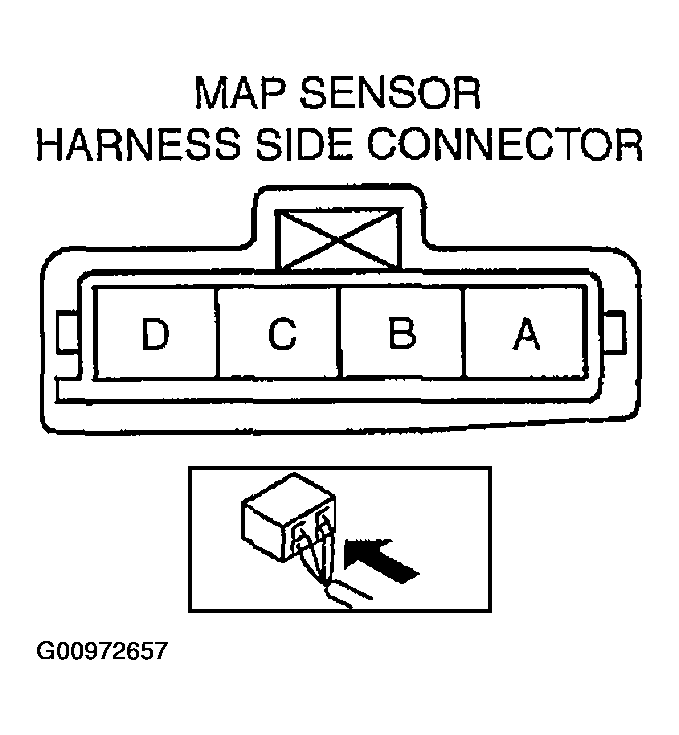

Fig 1: Identifying MAP Sensor Connector Terminals
Courtesy of MAZDA MOTORS CORP.
