2004 Mazda 3 i, AutomaticFACTORY OEM SERVICE PROCEDURE

Circuit Open/Short Inspection

  1. Disconnect the PCM connector.
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

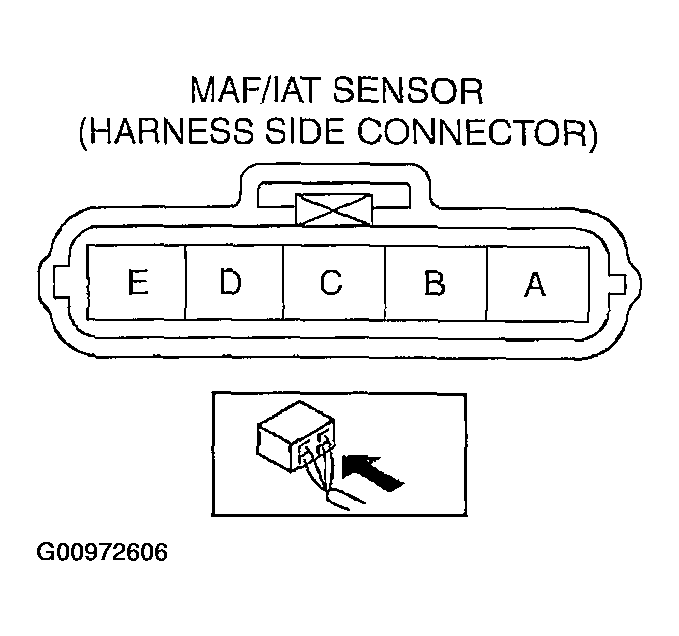

    Fig 1: Identifying Intake Air Temperature Sensor Terminals
    G00972606Courtesy of MAZDA MOTORS CORP.
  1. Open circuit
    • If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
      • MAF/IAT sensor terminal D and PCM terminal 1AH
      • MAF/IAT sensor terminal E and PCM terminal 1AA
  1. Short circuit
    • If there is continuity, there is a short circuit. Repair or replace the wiring harness.
      • MAF/IAT sensor terminal E and power supply
      • MAF/IAT sensor terminal D and power supply
      • MAF/IAT sensor terminal D and body GND
