2004 Mazda 3 i, AutomaticFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Position (App) Sensor Inspection: Notes
NOTE:
- Before performing the following inspection, make sure to follow the troubleshooting flowchart. (See FOREWORD .)

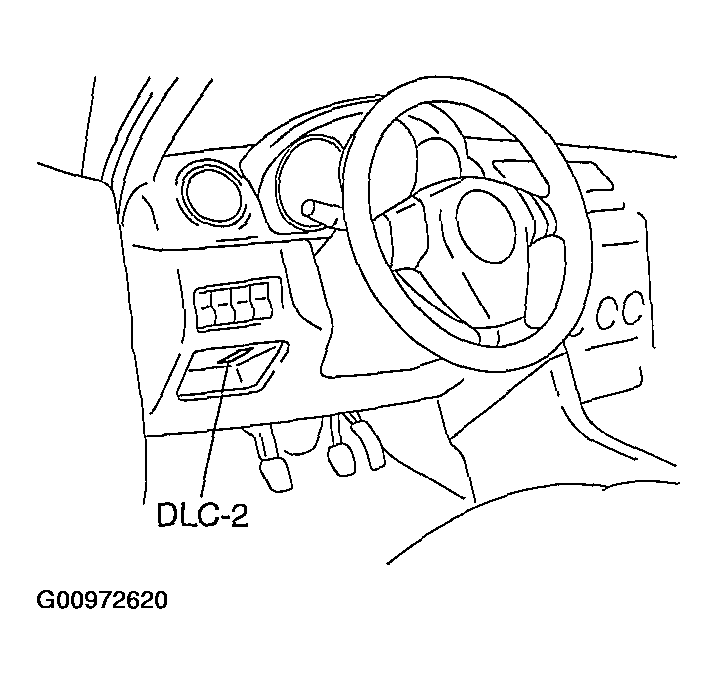

- Connect the WDS or equivalent to the DLC-2.
- Turn the ignition switch to ON position.
- Select APP1 and APP2 PID on the WDS or equivalent.
- Verify that the APP1 and APP2 PID is within the specification when the accelerator pedal not depressed. (See PCM INSPECTION .)
