2004 Mazda 3 L4-2.3LFACTORY OEM SERVICE PROCEDURE
Clutch Switch: Testing and Inspection
CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION
NOTE: Before performing the following inspection, make sure to follow the troubleshooting flowchart. (See FOREWORD.) Flow of Diagnosis
Continuity Inspection
1. Remove the CPP switch.

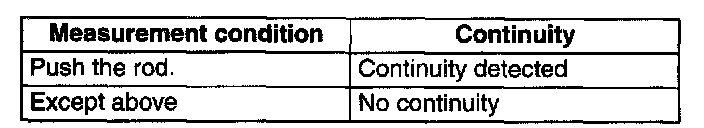

2. Verify that the continuity between CPP switch terminals A and B is as indicated in the table.
- If there is no malfunction, perform the "Circuit Open/Short Inspection".
- If there is any malfunction, replace the CPP switch.
Circuit Open/Short Inspection
1. Disconnect the PCM connector.
2. Disconnect the CPP switch connector.
3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
Open circuit
- If there is no continuity in the following wiring harnesses, there is an open circuit. Repair or replace the wiring harness.
- CPP switch terminal B and PCM terminal 1O
- CPP switch terminal A and body GND
Short circuit
- If there is continuity in the following wiring harnesses, there is a short circuit. Repair or replace the wiring harness.
- CPP switch terminal B and body GND
- CPP switch terminal B and power supply
NOTE: Before performing the following inspection, make sure to follow the troubleshooting flowchart. (See FOREWORD.) Flow of Diagnosis
Continuity Inspection
1. Remove the CPP switch.
2. Verify that the continuity between CPP switch terminals A and B is as indicated in the table.
- If there is no malfunction, perform the "Circuit Open/Short Inspection".
- If there is any malfunction, replace the CPP switch.
Circuit Open/Short Inspection
1. Disconnect the PCM connector.
2. Disconnect the CPP switch connector.
3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
Open circuit
- If there is no continuity in the following wiring harnesses, there is an open circuit. Repair or replace the wiring harness.
- CPP switch terminal B and PCM terminal 1O
- CPP switch terminal A and body GND
Short circuit
- If there is continuity in the following wiring harnesses, there is a short circuit. Repair or replace the wiring harness.
- CPP switch terminal B and body GND
- CPP switch terminal B and power supply
