2003 Mazda Protege5 AutomaticFACTORY OEM SERVICE PROCEDURE

Selector Cable Installation Note

CAUTION:

Do not apply load to the manual shaft after manual shaft is shifted to P position. Otherwise, the transaxle may be damaged.

Turn the manual shaft to the converter housing side fully, to set the P position.

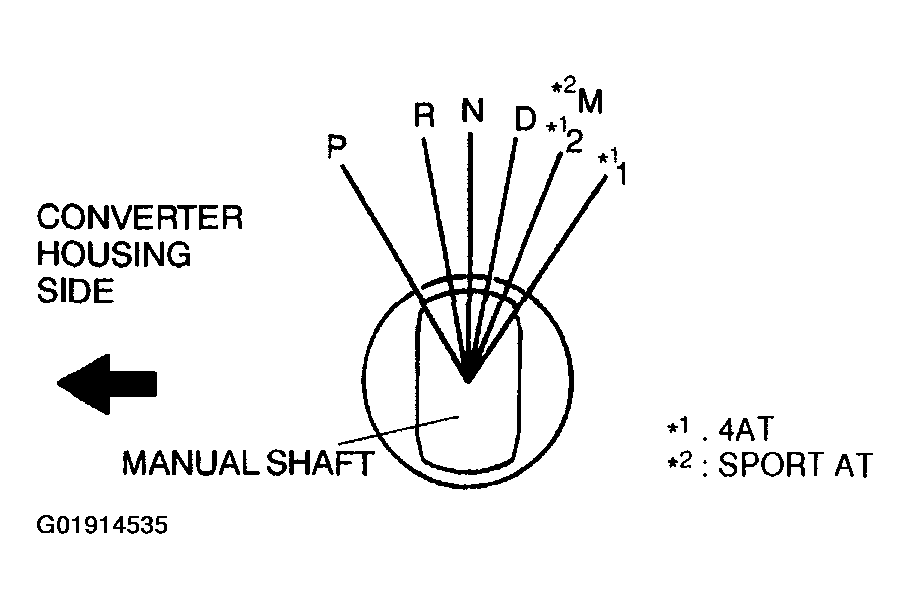

Fig 1: Turning Manual Shaft To Converter Housing Side
Courtesy of MAZDA MOTORS CORP.
Install the selector cable to the selector lever.

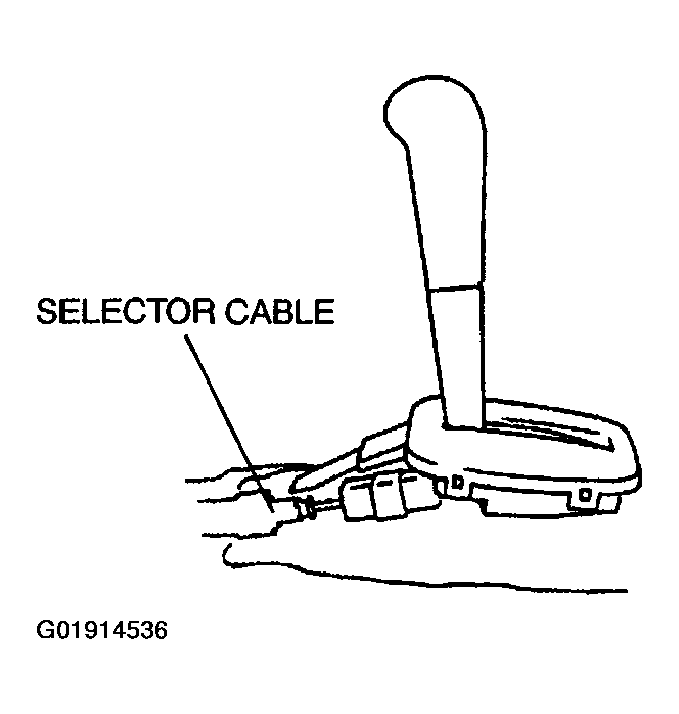

Fig 2: Installing Selector Cable To Selector Lever
Courtesy of MAZDA MOTORS CORP.
