2003 Mazda Protege5 AutomaticFACTORY OEM SERVICE PROCEDURE

Selector Lever Removal/Installation: Notes

Disconnect the negative battery cable.
Remove the center console.
Disconnect the brake switch connector.
Remove in the order indicated in the figure.
Install in the reverse order of removal.

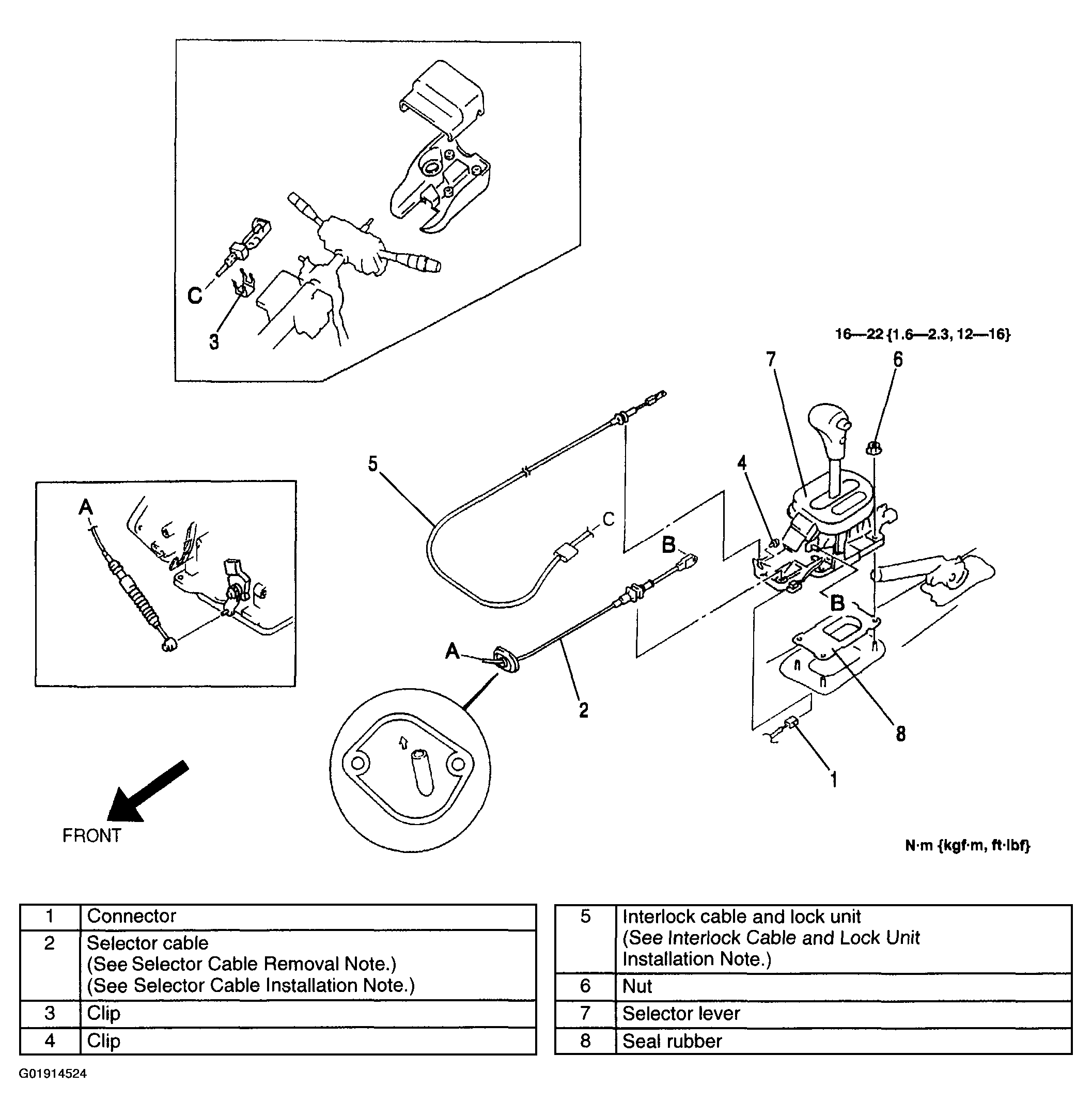

Fig 1: Removing Procedure Selector Lever - 4AT

Courtesy of MAZDA MOTORS CORP.
