2003 Mazda Protege5 AutomaticFACTORY OEM SERVICE PROCEDURE
Interlock Cable and Lock Unit Installation Note
- Verify that the ignition switch is at ACC position, and shift the selector lever to P position.

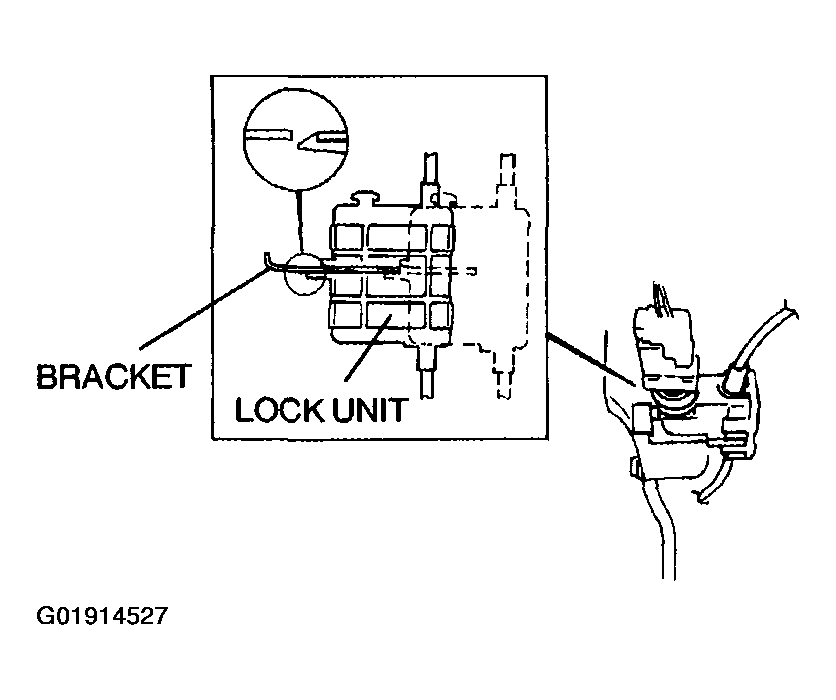

- Press the lock unit onto the brake pedal stopper bracket.
- From this position, slide the lock unit to fix the lock unit hook into the bracket hole securely as shown in the figure.
- Install the interlock cable to the key cylinder.
- Slide the outer casing to the key cylinder. Verify that the outer casing hook is secured in the cylinder hole.
- Insert the clip over the convex part of the outer casing.CAUTION:
- Allowing the interlock cable to become bent or twisted during installation can affect the lock unit operation.
