2003 Mazda Protege5 AutomaticFACTORY OEM SERVICE PROCEDURE
Cam Assembly Note

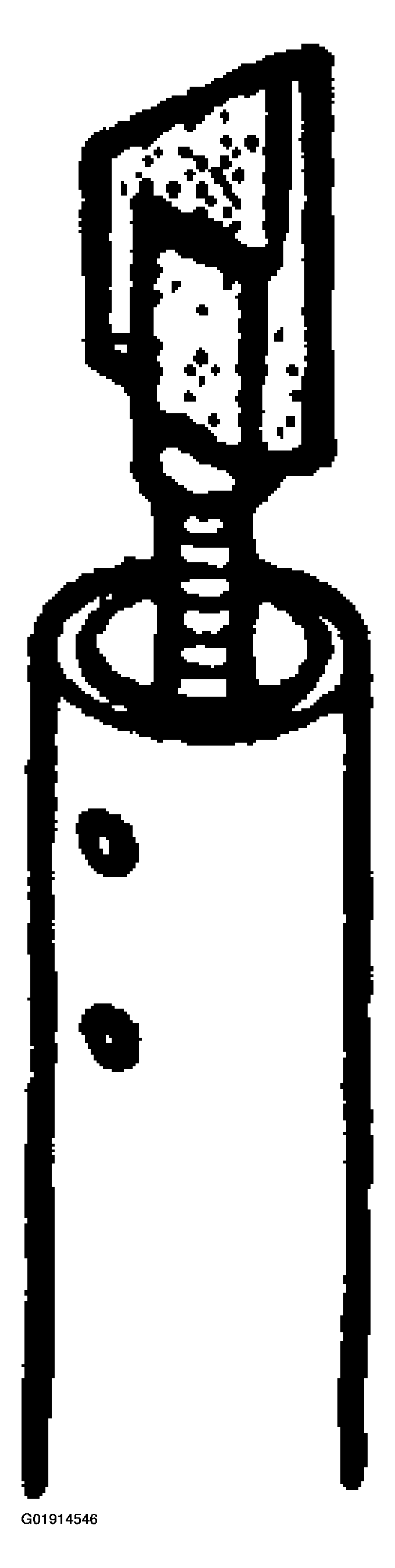

- Loosely install the cam to the push rod.NOTE:
- Clearance can be reduced by turning the cam clockwise.

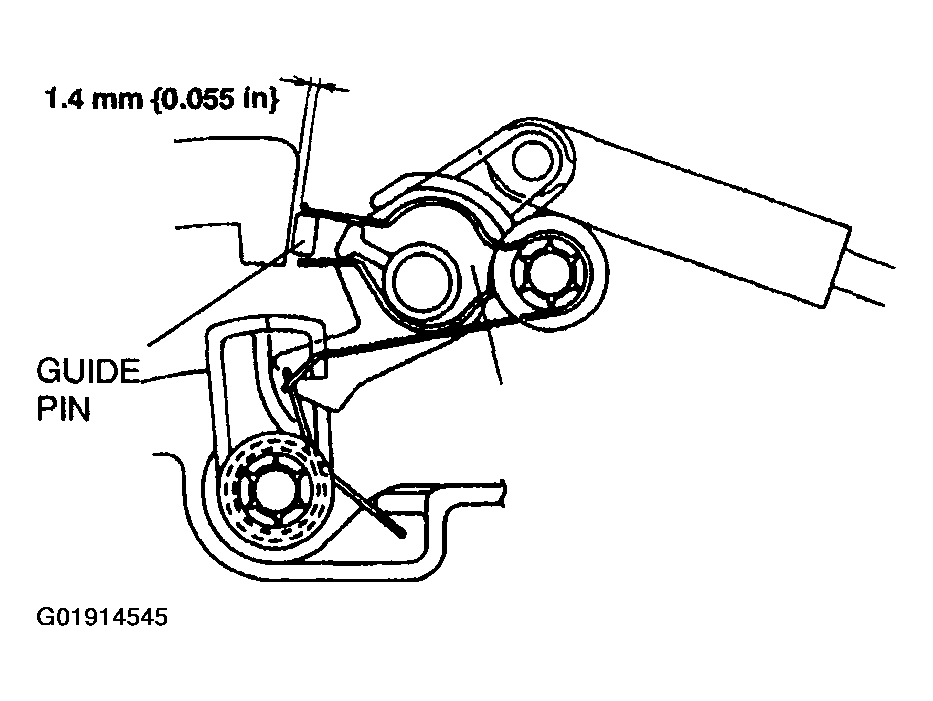

- Adjust the clearance between the guide plate and the guide pin by turning the cam.
- Install the selector lever knob and verify that the clearance is as specified.
- If not, repeat from Step 2 .
- Remove the selector lever knob.
- Apply grease to the cam as shown.
