2003 Mazda Protege5 AutomaticFACTORY OEM SERVICE PROCEDURE
Abs Hydraulic Unit (HU)/Control Module (Cm) Inspection: Notes
- Disconnect the negative battery cable.

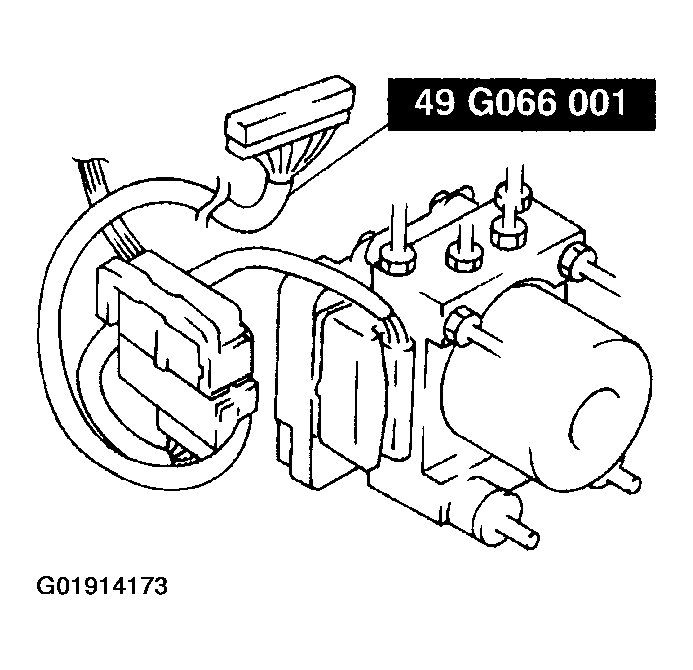

- Connect the SST between the ABS HU/CM and harness connector with the ignition switch off.
- Attach the tester leads to the SST and inspect voltage. Refer to TERMINAL VOLTAGE TABLE (REFERENCE) .
