2003 Mazda Protege5 AutomaticFACTORY OEM SERVICE PROCEDURE

Keyless Control Module Removal/Installation: 5HB

Disconnect the negative battery cable.
Disconnect the keyless control module connector, (under driver's side dash)
Remove the bolt to remove the keyless control module and the bracket as a module.

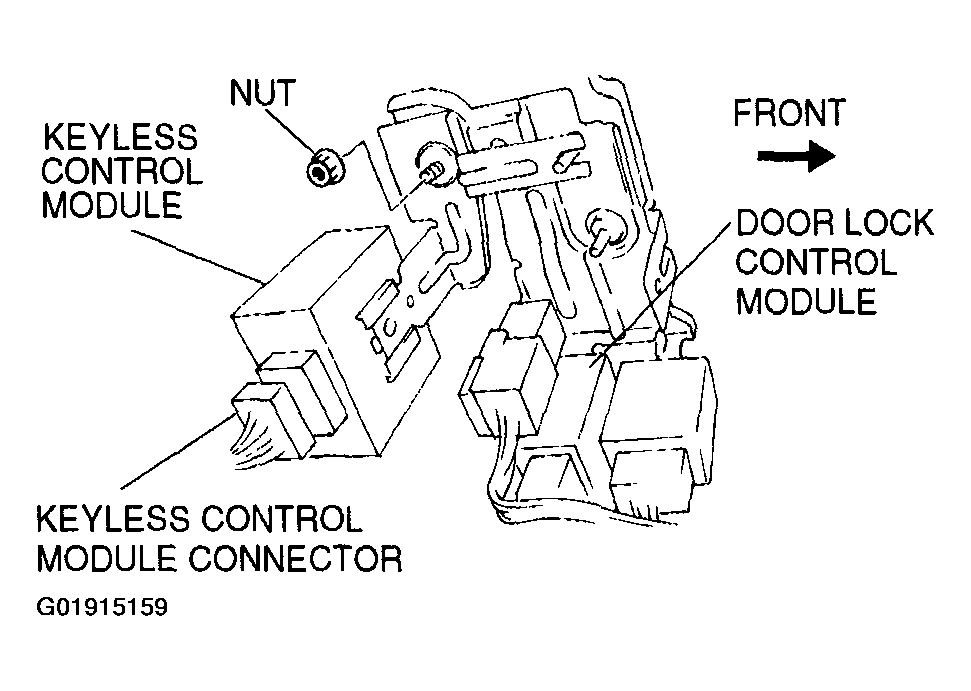

Fig 1: Removing Keyless Control Module
Courtesy of MAZDA MOTORS CORP.
Remove the screw.
Push the stopper using a small driver, and remove the bracket.

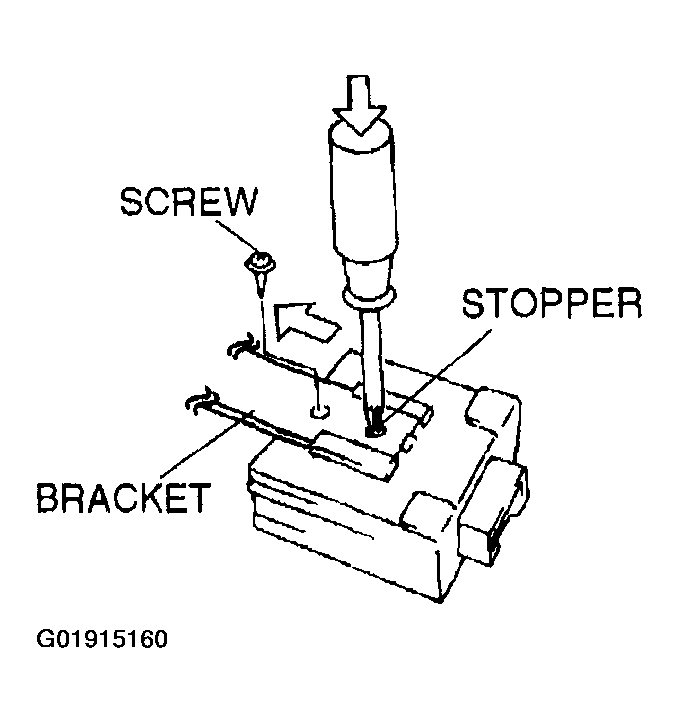

Fig 2: Pushing Stopper Using Small Driver

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
