2003 Mazda Protege5 AutomaticFACTORY OEM SERVICE PROCEDURE

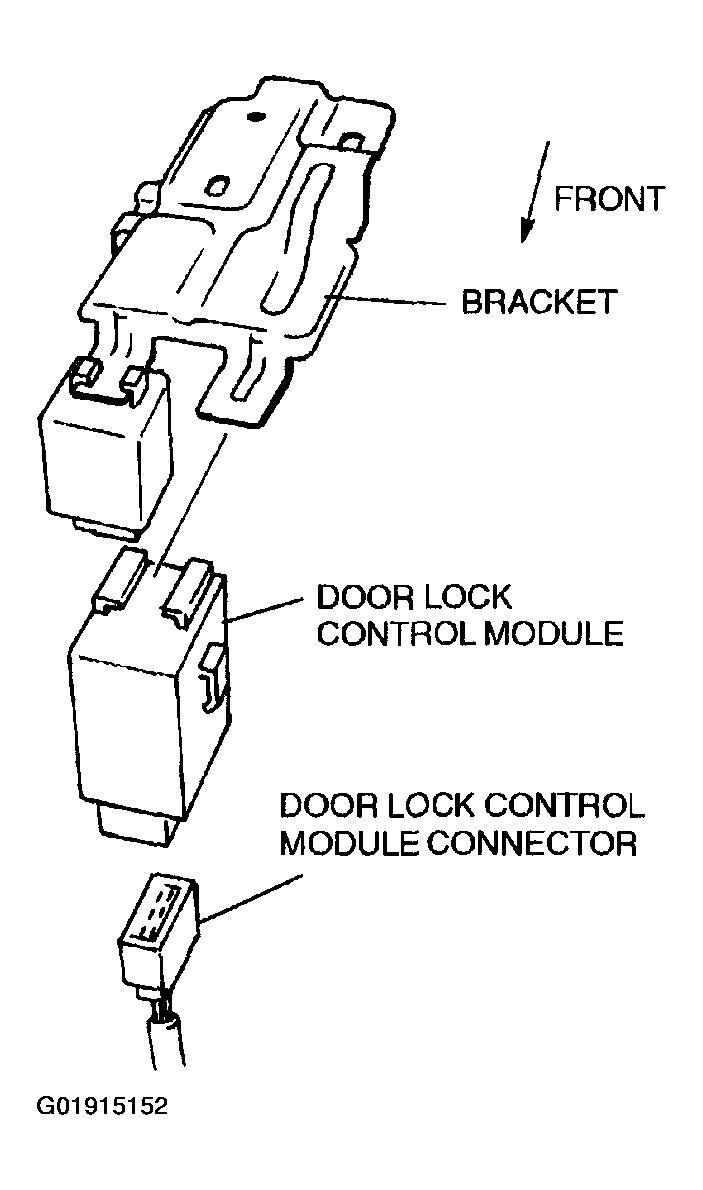

Door Lock Control Module Removal/Installation
NOTE:
Because the lock section of the module in damaged easily, do not remove the module from the bracket unless replacement is necessary. Always perform an inspection of the door lock control module before removal.
- Disconnect the negative battery cable.
- Remove the lower panel
- Remove the bracket.
- Disconnect the door lock control module by prying the lock section of the upper part with a flathead screwdriver.
- Install in the reverse order of removal.
