2003 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Selector Lever Inspection
- Turn the ignition switch to ON position.

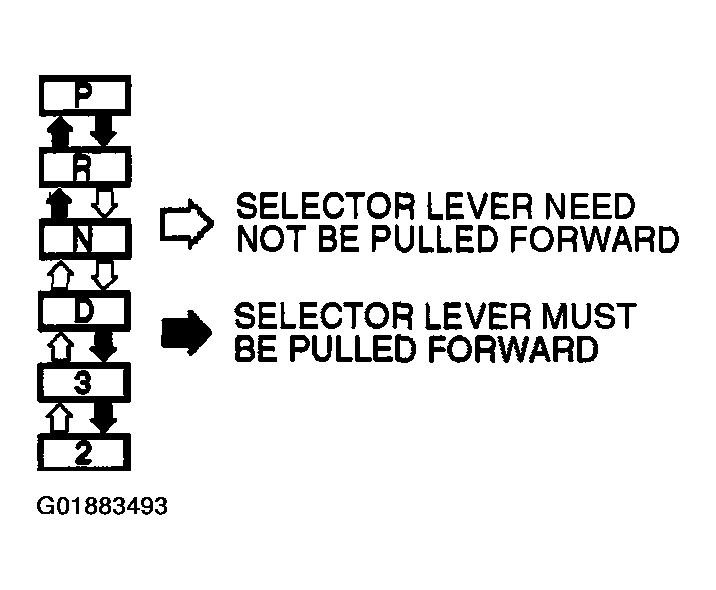

- With the brake pedal depressed, verify that there is a "click" at each range when shifted in the pattern shown.
- Verify that the selector lever can only be shifted as shown in Fig 1 .
- Verify that the positions of the selector lever and the selector indicator light are aligned.
- If not as specified, adjust the TR switch and/or selector cable. (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT .) (See SELECTOR CABLE ADJUSTMENT .)
- Verify that the vehicle operates in each selected range.
