2003 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Line Pressure Test: Notes
NOTE:
- Line pressure cannot be measured on the JA5A-EL automatic transaxle. Measure the low clutch pressure in place of D, 3, and 2 range line pressures. Measure the reverse clutch pressure in place of R position line pressure.
- Engine idling.
- Perform mechanical system test preparation. (See
MECHANICAL SYSTEM TEST PREPARATION
.)WARNING:
- Removing the plug when the ATF is hot can be dangerous. Hot ATF can come out of the opening and badly burn you. Before removing the square-head plug, allow the ATF to cool.

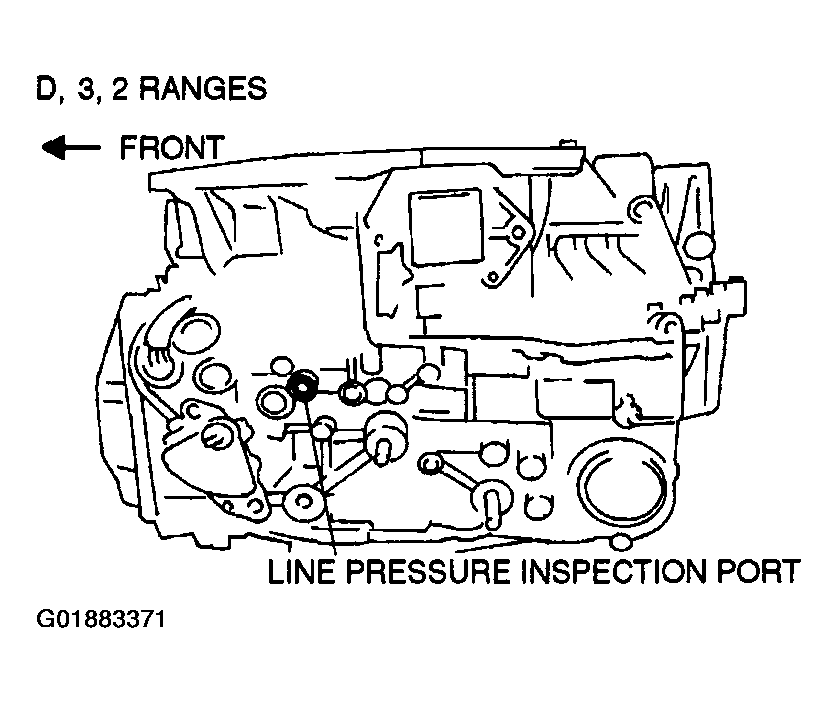

- Remove the plug and O-ring shown in Fig 1 and Fig 2 .
- Perform mechanical system test preparation. (See
MECHANICAL SYSTEM TEST PREPARATION
.)
