2003 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

Front Buckle Removal/Installation

Disconnect the negative battery cable.
Remove the side cover. (See FRONT SEAT DISASSEMBLY/ASSEMBLY .)
Remove in the order indicated in the figure below.

Fig 1: Identifying Side Cover Removal Order - Front Buckle
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

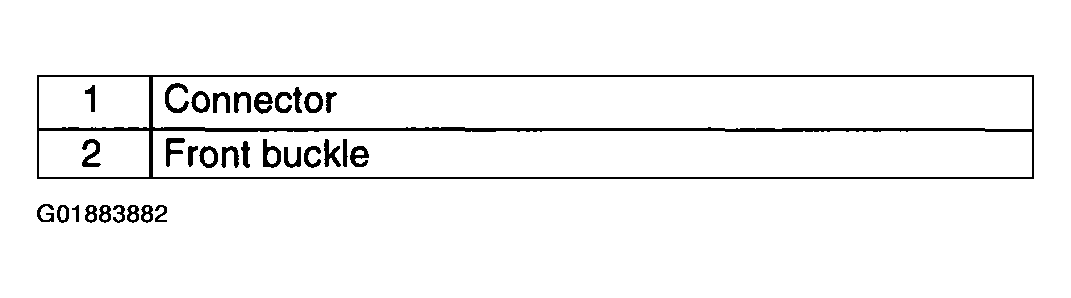

Fig 2: Removing Side Cover - Front Buckle
Courtesy of MAZDA MOTORS CORP.
