2003 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

Bolt Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Press and remove the tabs on the main fuse block at the positions indicated by the arrows.

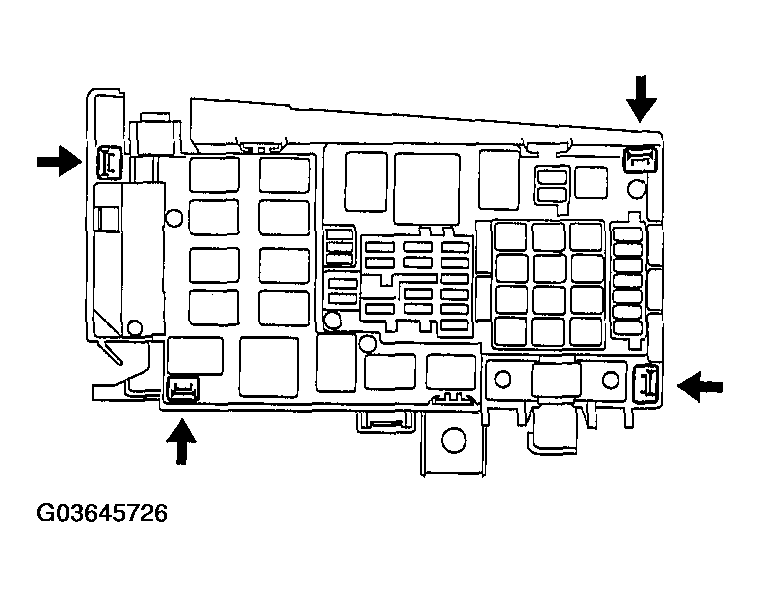

Fig 1: Locating Tabs On Main Fuse Block
Courtesy of MAZDA MOTORS CORP.
Lift up the main fuse block and remove the bolts.

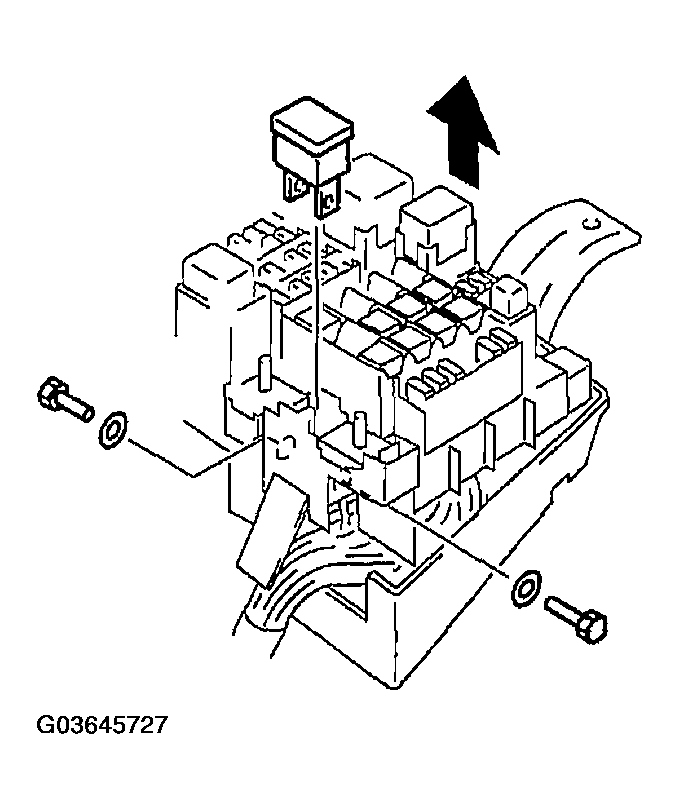

Fig 2: Removing Main Fuse Bolts
Courtesy of MAZDA MOTORS CORP.
