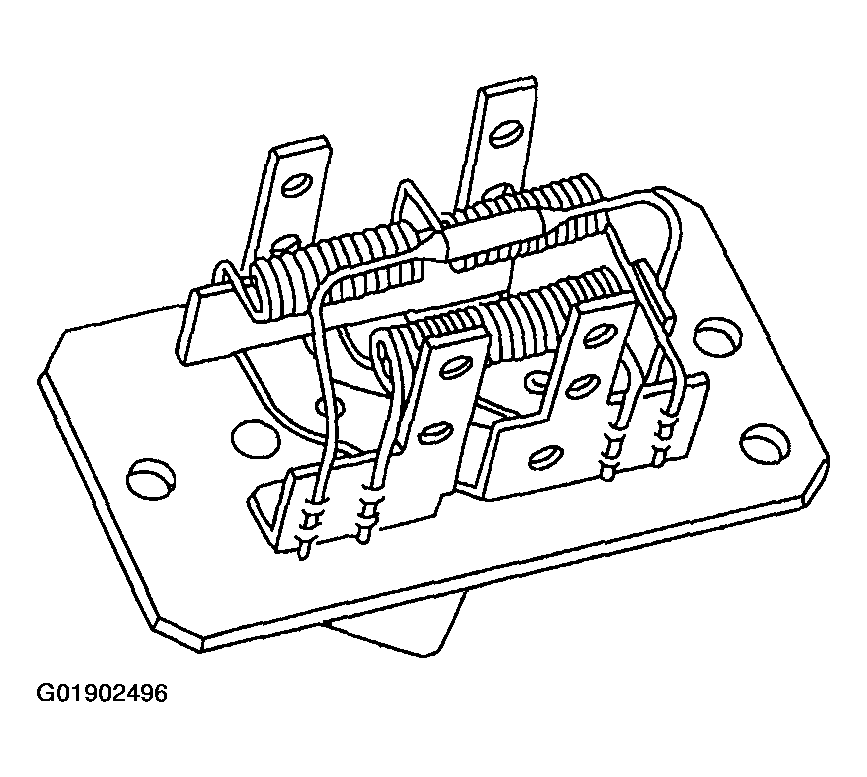

Blower Motor Switch Resistor
The four-speed operation of the blower motor is achieved through the blower motor switch resistor and contains a thermal limiter which is used as a temperature protecting fuse. The assembly is located on the passenger-side on the evaporator core housing behind the glove compartment.
