2003 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Climate Control System: Floor
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

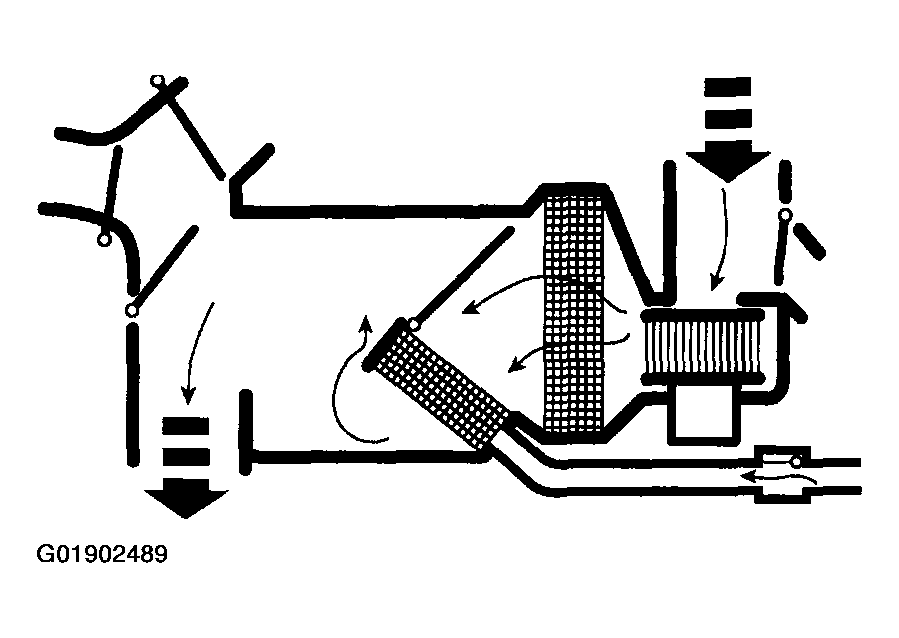

When FLOOR is selected:
- The air inlet blend door is in the no vacuum position, blocking recirculation air and allowing outside air.
- The footwell airflow door is at the full vacuum position, opening the door and allowing airflow through the footwell ducts.
- The defrost airflow door and the vent/register blend door are in the no vacuum position, closing off airflow to the windshield defroster hose nozzles and driver, passenger and center registers.
- The temperature control can be positioned to mix air flowing through and around the heater core to achieve the selected temperature level.
- The A/C compressor is disabled when FLOOR is selected.
- The blower motor is on.
