2003 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Audio Control Switch Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The audio control switch and the cruise control switch use a common connector.
- Disconnect the negative battery cable.
- Remove the driver-side air bag module. See DRIVER-SIDE AIR BAG MODULE .
- Remove the steering wheel.

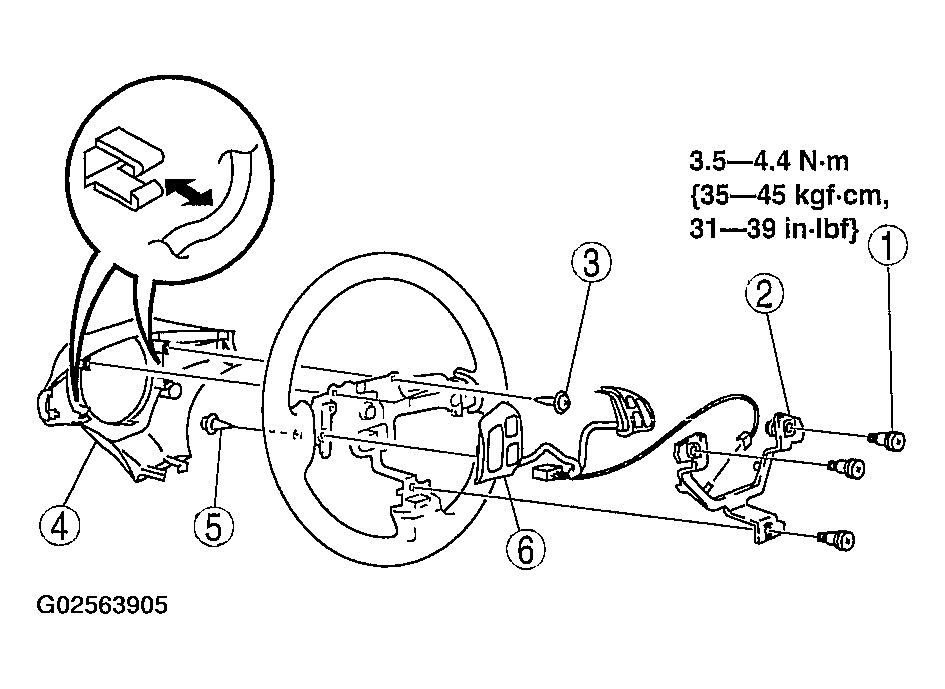

- Remove in the order indicated in the table/figure.REMOVING/INSTALLING AUDIO CONTROL SWITCH
Component/Step No. Component Description 1 Bolt 2 Bracket 3 Screw 4 Cover 5 Screw 6 Audio control switch/cruise control switch - Install in the reverse order of removal.
