2003 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Main Relay
NOTE:
On MAZDA6, when testing ET control relay, use main relay testing procedure.

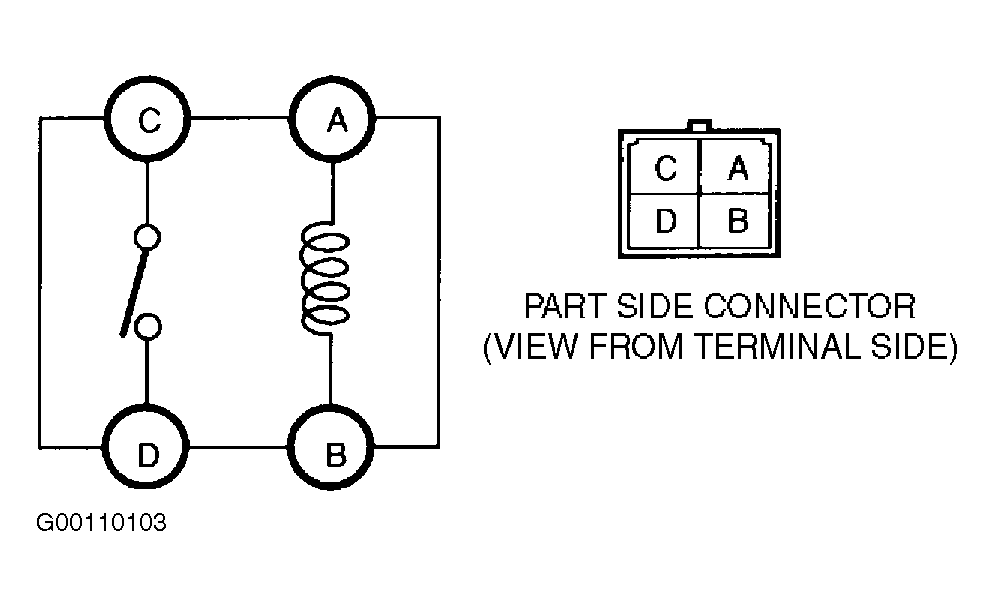

- Ensure main relay clicks when ignition is turned on and off. If no sound is heard, locate and remove main relay from main fuse box, in engine compartment. Using ohmmeter, check continuity between main relay terminals "C" and "D". See Fig 1 and Fig 2 . Continuity should not be present.
- Using fused jumper wires, apply battery voltage to main relay terminal "A" and ground terminal "B" (terminal E" on MAZDA6 & MPV). Continuity should be present between main relay terminals "C" and "D". See Fig 1 and Fig 2 . If continuity is not as specified, replace main relay.
