2003 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Power Window Motor Assembly Note
NOTE:
- The cable must be held to install the drum; install with another person.

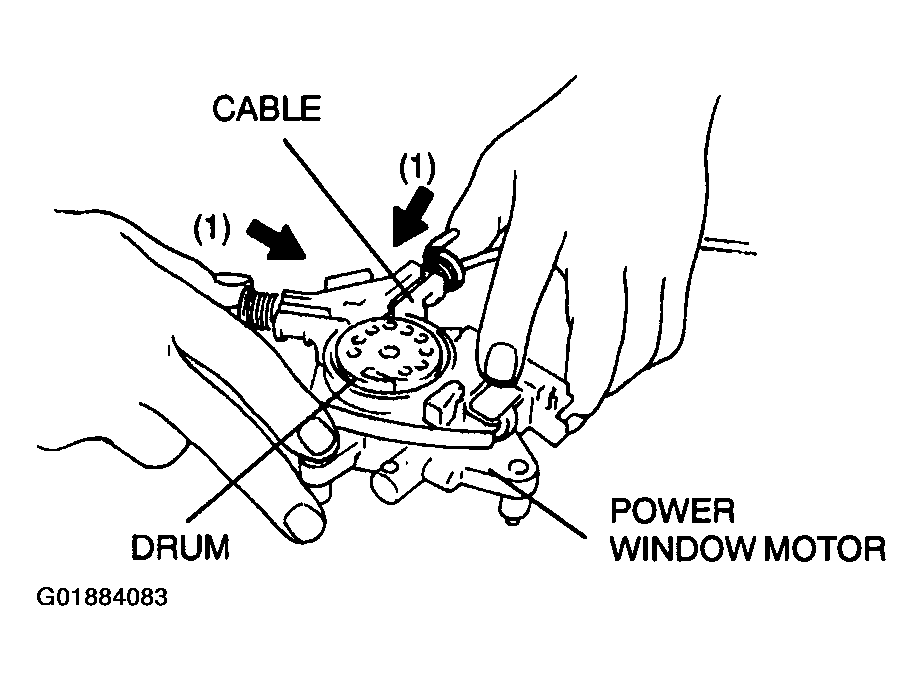

- Press the cable as shown in Fig 1 to remove any slack (1).
- Install the drum to the power window motor.
