2003 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

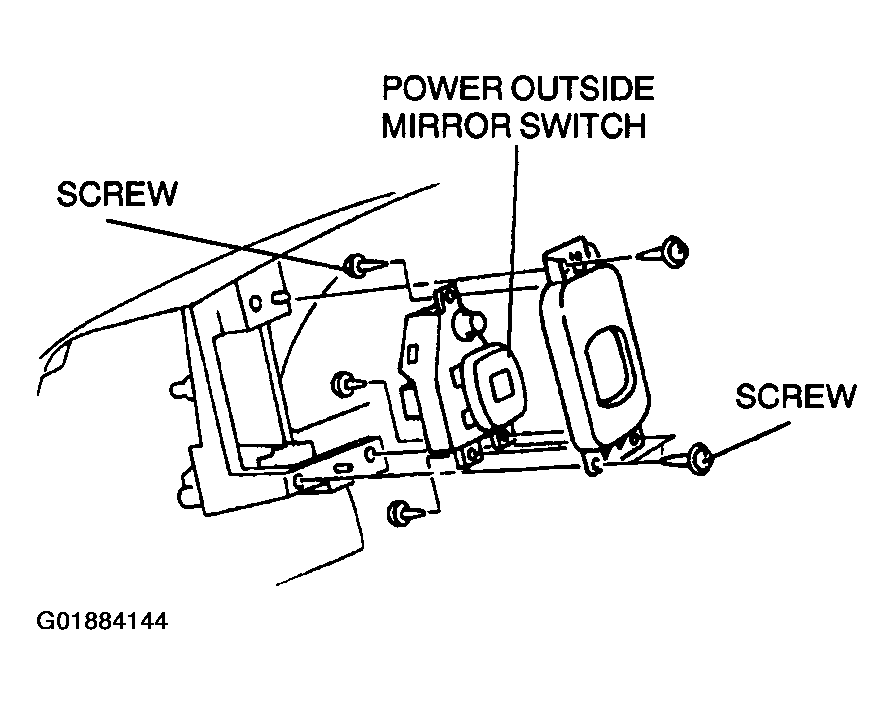

Power Outside Mirror Switch Removal/Installation
- Disconnect the negative battery cable.
- Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
- Remove the screws, and remove the power outside mirror switch.
- Disconnect the connector.
- Install in the reverse order of removal.
