2003 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Power Outside Mirror Removal/Installation
- Disconnect the negative battery cable.
- Remove the inner garnish.
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Partially peel off the door screen.
- Disconnect the connector.

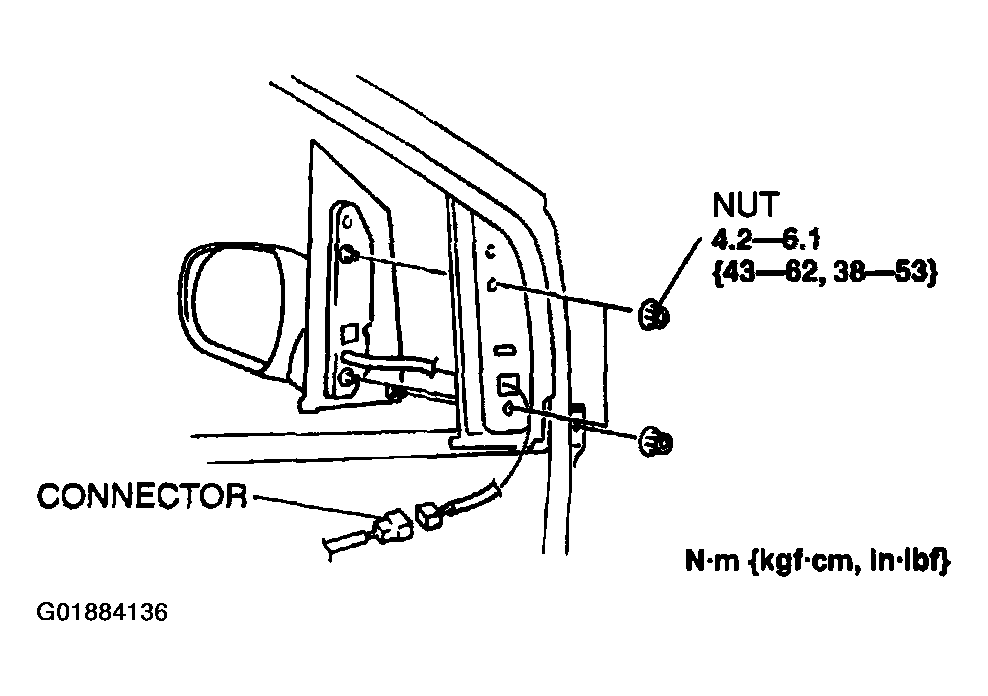

- Remove the nuts, and then remove the power outside mirror.
- Install in the reverse order of removal.
