2003 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

Knock Sensor

KNOCK SENSOR (KS) RESISTANCE

Temperature °F (°C)

Ohms

B2300, B3000 & B4000 ⁽¹⁾

68 (20)

4390-5350

Mazda6 & MPV

68 (20)

4870

Miata ⁽²⁾

68 (20)

560K

Protege

68 (20)

532-588K

Tribute ⁽³⁾

68 (20)

4390-5350

⁽¹⁾	Measure the resistance between PCM test pin 32 and PCM test pin 57 on break-out box. See Fig 1 .

⁽²⁾	Measure resistance between terminal "A" and KS body. See Fig 3 .

⁽³⁾	Measure the resistance between PCM test pin 87 (2.0L) or PCM test pin 32 (3.0L) and PCM test pin 57. See Fig 6 and Fig 7 .

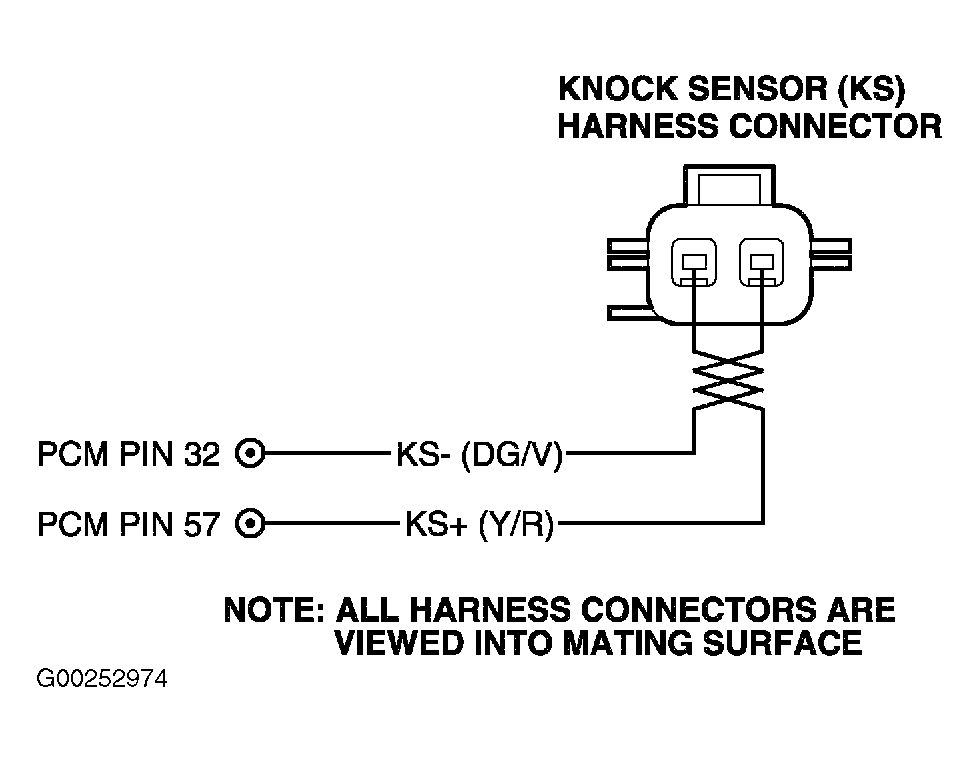

Fig 1: Identifying KS Terminals (B2300, B3000 & B4000)

Courtesy of MAZDA MOTORS CORP.
