2003 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

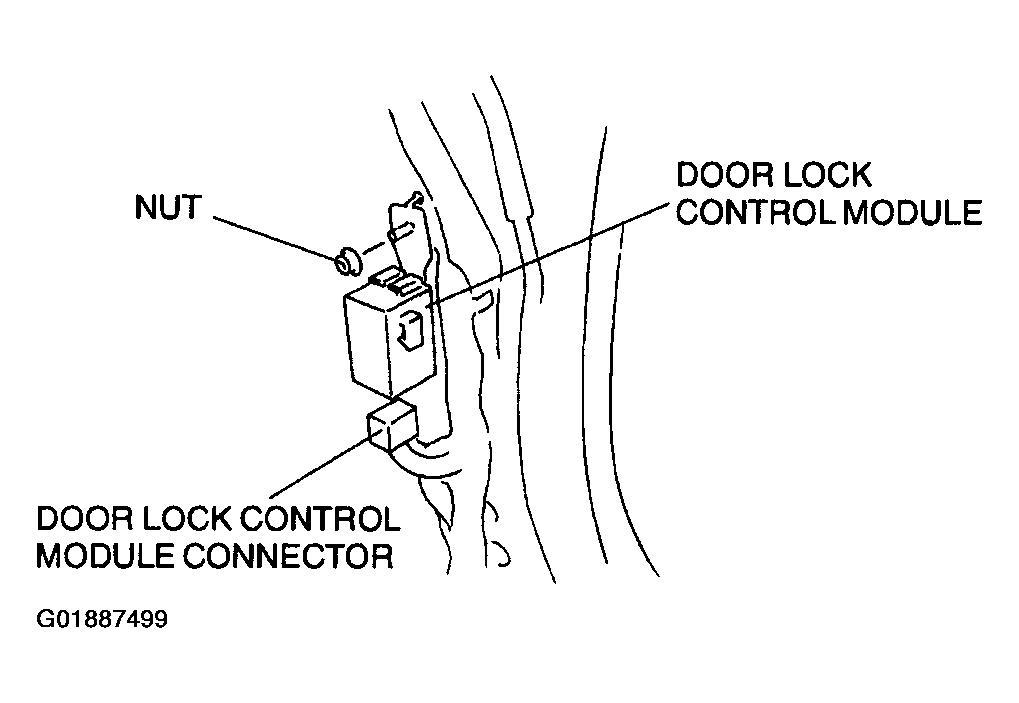

Door Lock Control Module Removal/Installation
- Disconnect the negative battery cable.
- Remove the passenger-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Disconnect the door lock control module connector.
- Remove the nut.
- Remove the door lock control module.
- Install in the reverse order of removal.
