2003 Mazda B2300 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Passive Anti-Theft Transceiver Module Removal/Installation

CAUTION:
  • Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.
  1. Disconnect the negative battery cable.
  2. Remove the ignition switch lock cylinder. See IGNITION LOCK CYLINDER REMOVAL/INSTALLATION .
  3. If equipped, remove the tilt wheel handle.

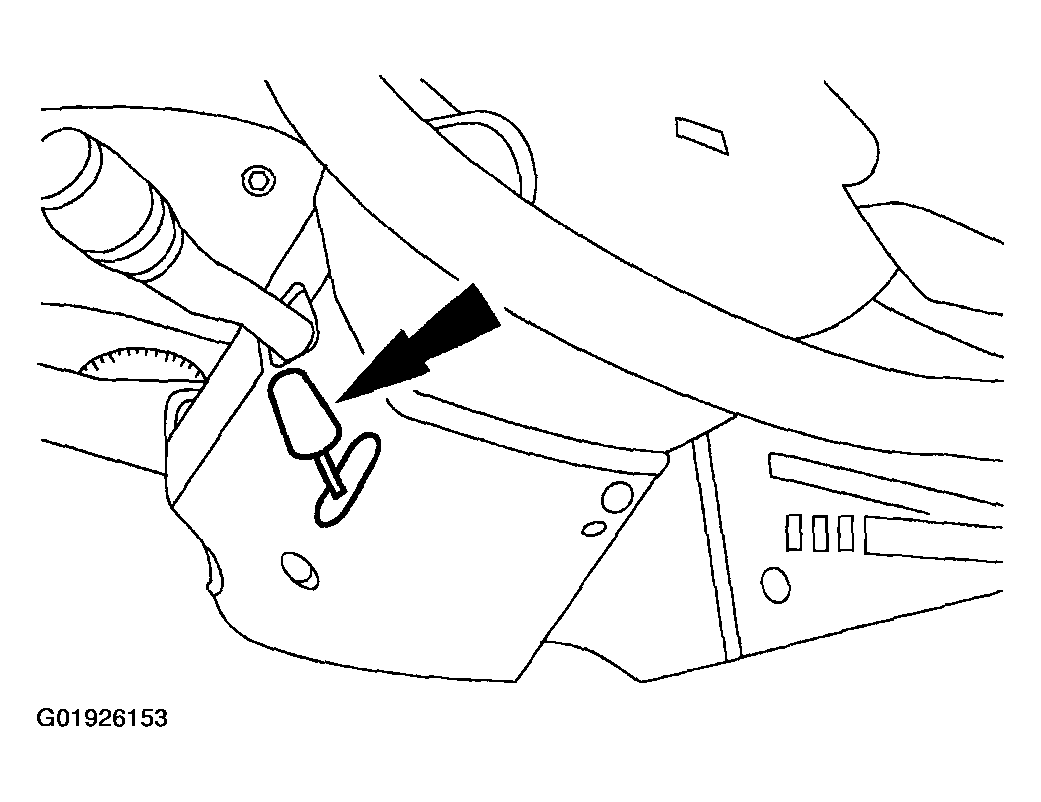

    Fig 1: Removing Tilt Wheel Handle
    G01926153Courtesy of MAZDA MOTORS CORP.
  4. Remove the upper and lower steering column shrouds.
    1. Remove the screws.
    2. Remove the upper and lower steering column shroud.

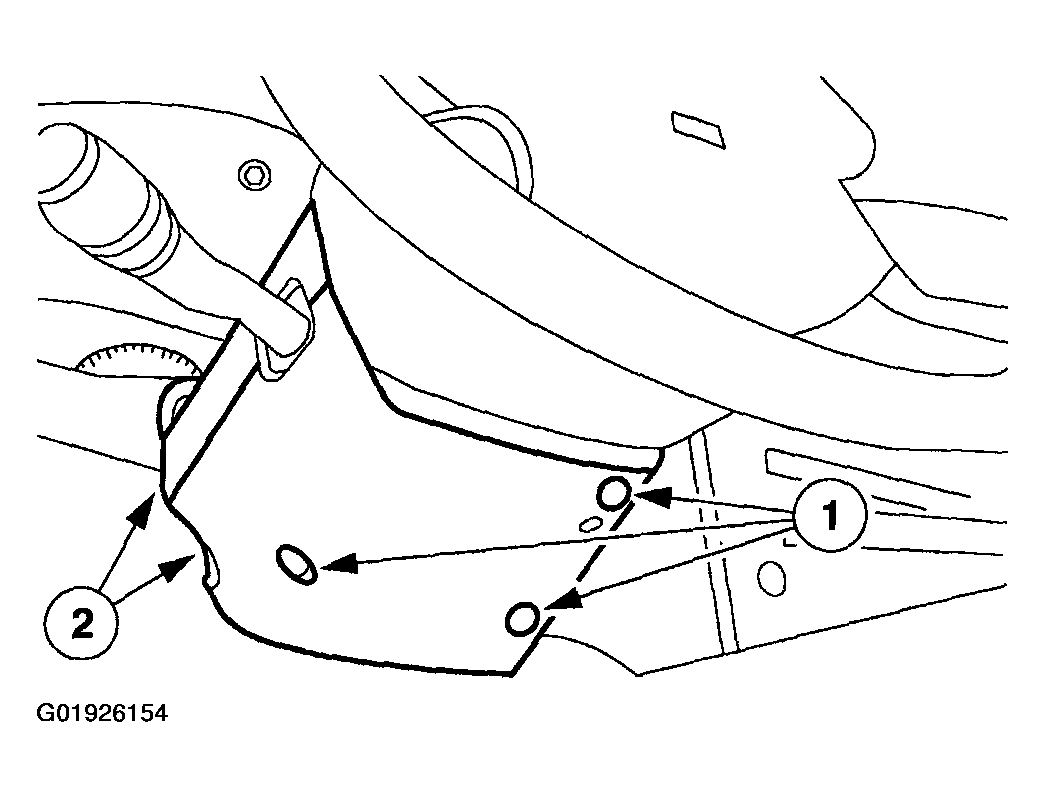

    Fig 2: Removing Upper And Lower Steering Column Shrouds
    G01926154Courtesy of MAZDA MOTORS CORP.
  5. Remove the lower instrument panel steering column cover.
    1. Remove the screws.
    2. Remove the lower instrument panel steering column cover.

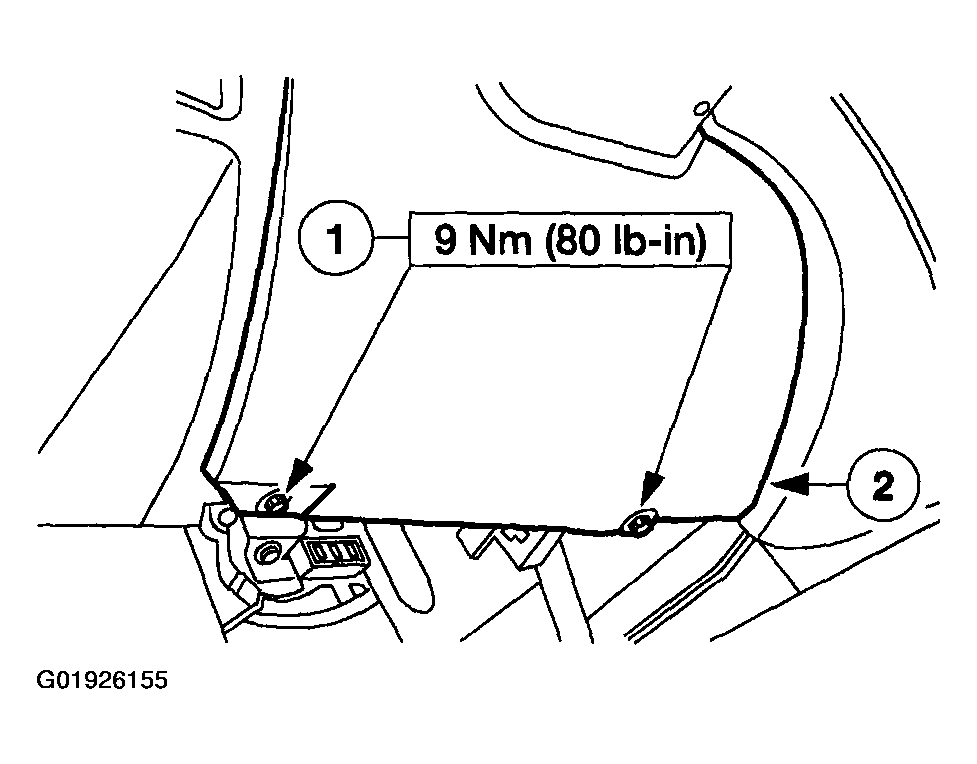

    Fig 3: Removing Lower Instrument Panel Steering Column Cover
    G01926155Courtesy of MAZDA MOTORS CORP.
  6. Remove the instrument panel steering column opening cover reinforcement.
    1. Remove the bolts.
    2. Remove the instrument panel steering column opening cover reinforcement.
    Fig 4: Removing Instrument Panel Steering Column Opening Cover Reinforcement
    G01926156Courtesy of MAZDA MOTORS CORP.
