2003 Mazda 6 s, AutomaticFACTORY OEM SERVICE PROCEDURE
Transaxle Control Module (TCM)
- Check display of DTC U0100, using scan tool. See Figure.

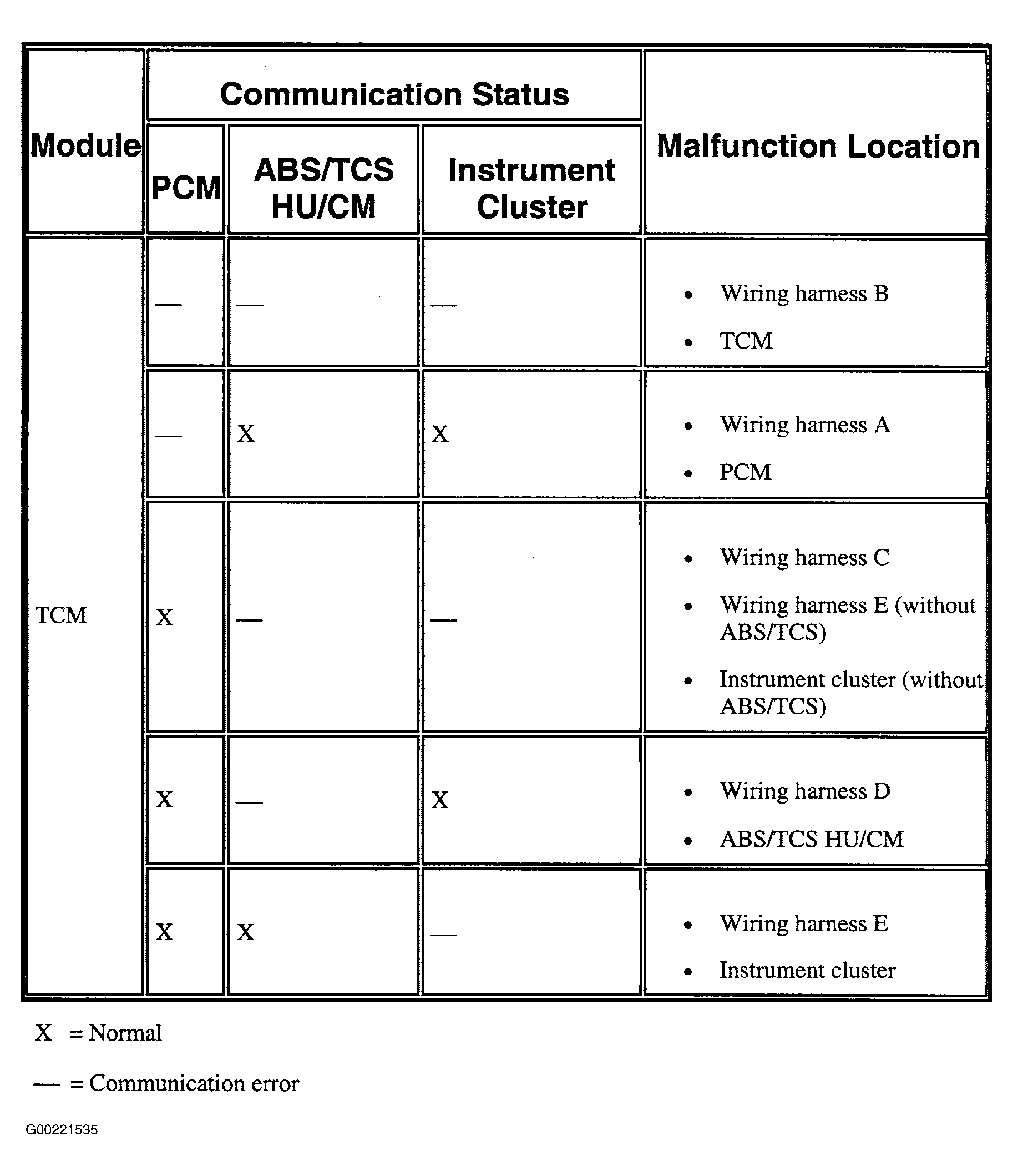

- Referring to TCM Malfunction Locator Table, determine malfunctioning part of CAN system. See Figure and Fig 1 .
NOTE:
TCM is not able to read DTCs nor PIDs for confirming normal communication between ABS/TCS HU/CM and instrument cluster. Therefore use WDS or equivalent scan tool to read PIDs from the ABS/TCS HU/CM and instrument cluster in order to confirm normal communication between the two modules.
