2003 Mazda 6 s, AutomaticFACTORY OEM SERVICE PROCEDURE

Powertrain Control Module (PCM)

Check display of DTC U0121 and/or U0155, using scan tool. See Fig 1.

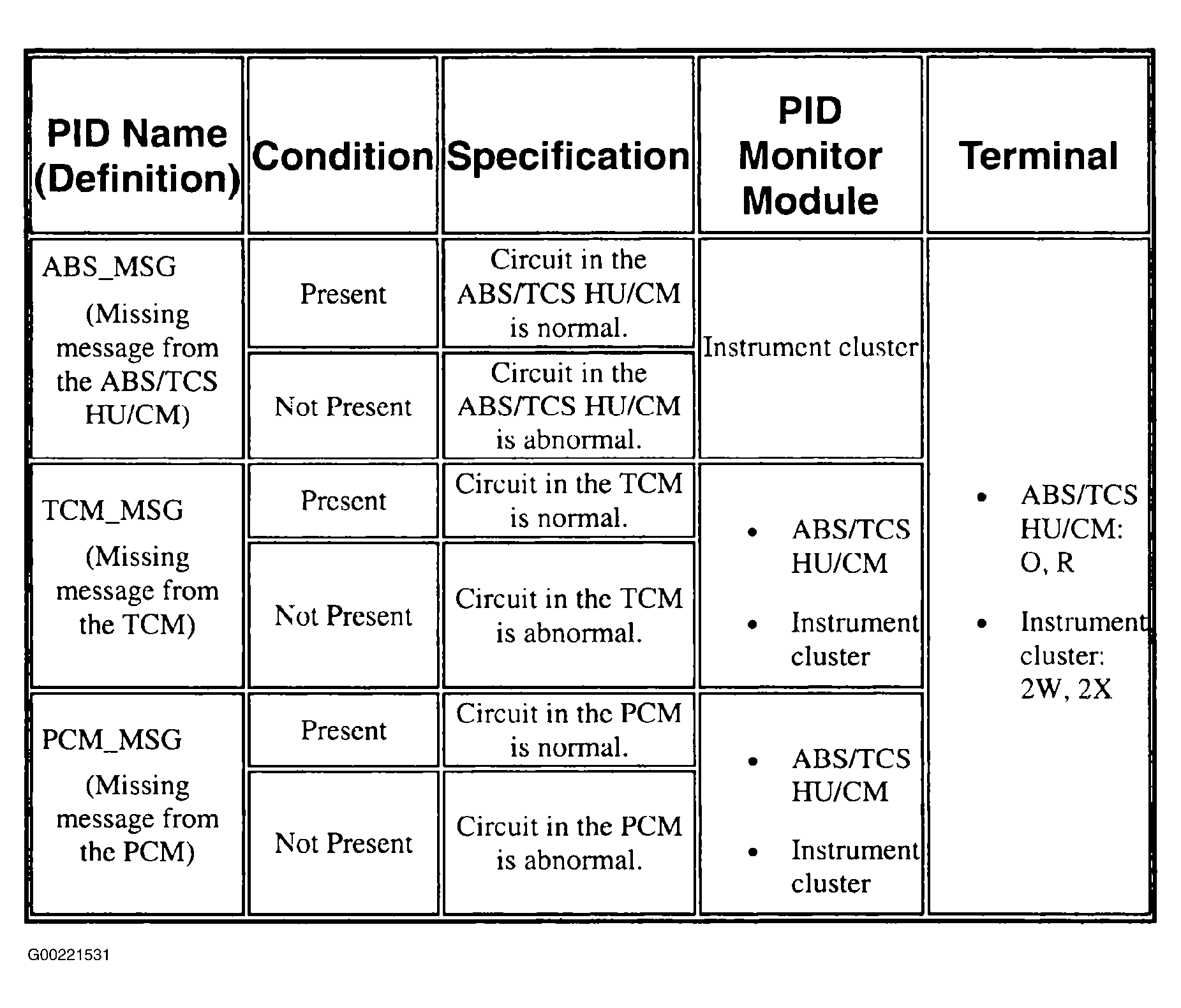

Fig 1: DTC Table (Multiplex Communication System)
Courtesy of MAZDA MOTORS CORP.
Referring to PCM Malfunction Locator Table, determine malfunctioning part of CAN system. See Figure and Fig 2 .

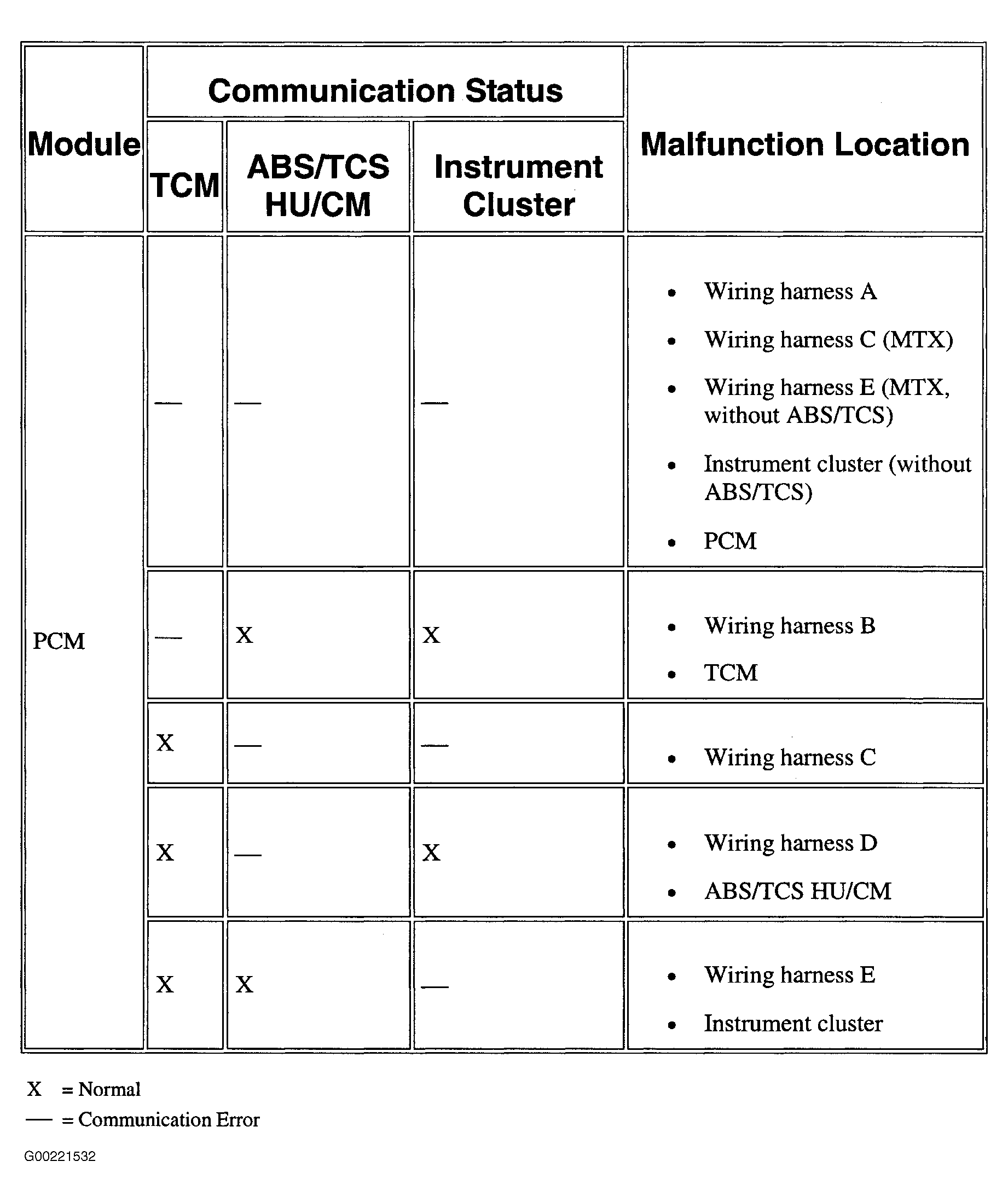

Fig 2: PCM Malfunction Locator Table

Courtesy of MAZDA MOTORS CORP.
