2003 Mazda 6 s, AutomaticFACTORY OEM SERVICE PROCEDURE

Reusing Windshield

NOTE:

Before removing the windshield from the body, mark the position of the windshield by affixing tape to the windshield and body panel.

Make a hole through the sealant, avoiding pins, from the inside of the vehicle using an awl.

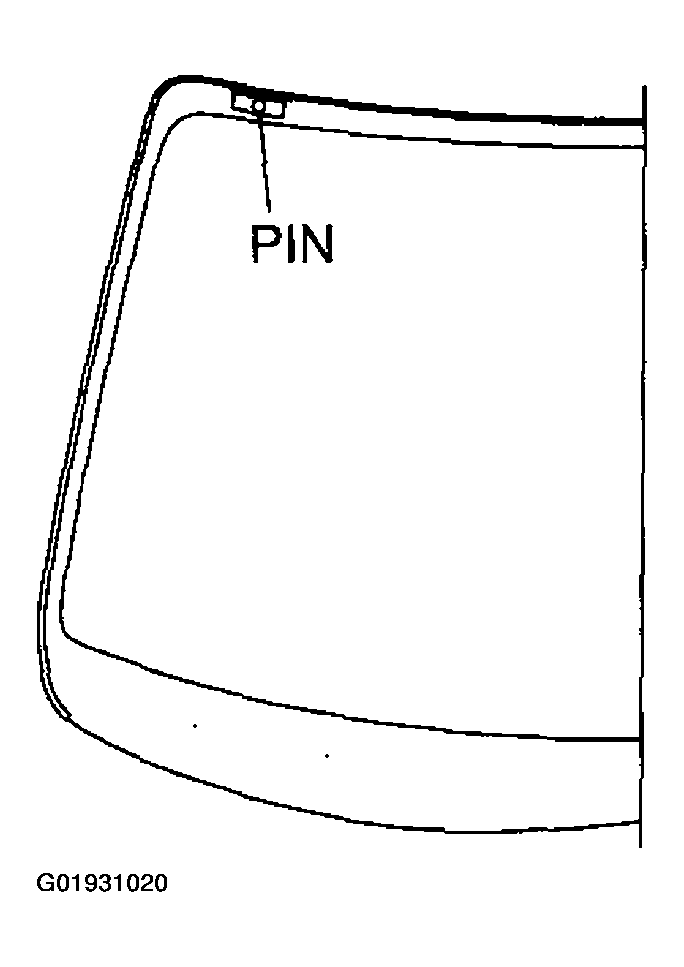

Fig 1: Identifying Pin
Courtesy of MAZDA MOTORS CORP.
Pass the SST (piano wire) through the hole.
WARNING:
- Using the SST (piano wire) with bare hands can cause injury. Always wear gloves when using the SST (piano wire).
Wind each end of the SST (piano wire) around a bar.

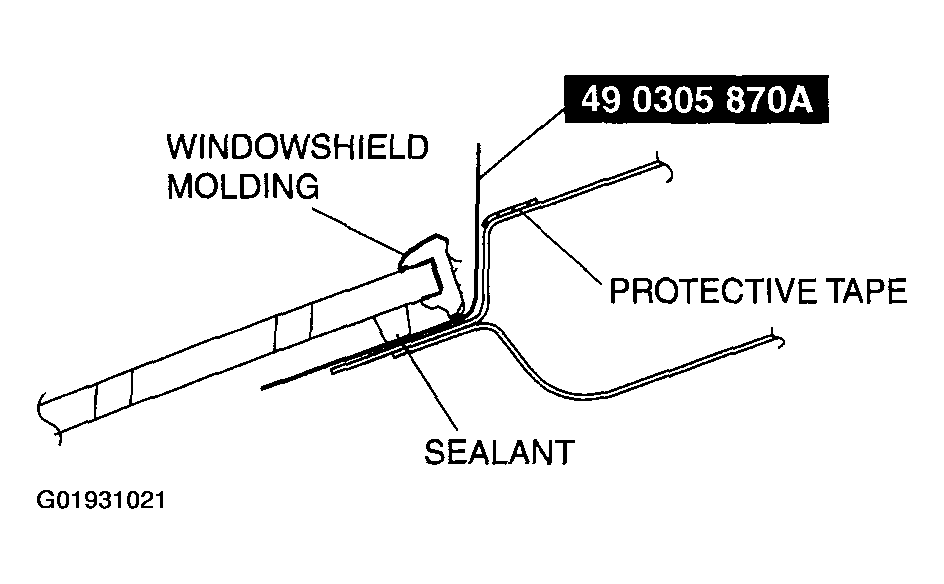

Fig 2: Identifying Protective Tape And Sealant For Windshield Molding
Courtesy of MAZDA MOTORS CORP.
