2003 Mazda 6 L4-2.3LFACTORY OEM SERVICE PROCEDURE
Fuse Block: Service and Repair
FUSE BLOCK REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the left-side front side trim.

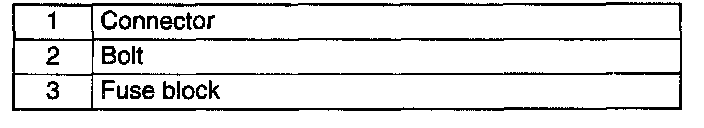

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal
1. Disconnect the negative battery cable.
2. Remove the left-side front side trim.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal
