2002 Mazda B2300 StandardFACTORY OEM SERVICE PROCEDURE
Front Speed Sensor (4X4) Removal/Installation
- Remove disc plate shield. For 2001 models refer to FRONT BRAKE ROTOR and for 2002 models refer to FRONT BRAKE ROTOR .
- Disconnect the front speed sensor connector and unclip the front speed sensor wire from the vehicle frame.

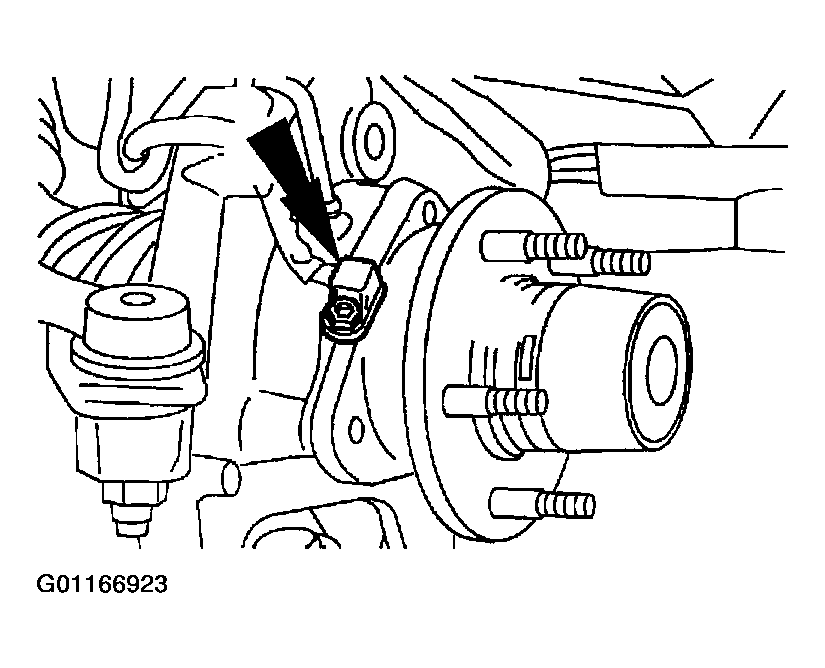

- Remove the bolt (1) and front speed sensor (2).
- Install in reverse order of removal.
- Tightening Torque
- 7-9 N.m (71-92 kgf.cm, 63-79 in.lbf)
