2002 Mazda B2300 StandardFACTORY OEM SERVICE PROCEDURE

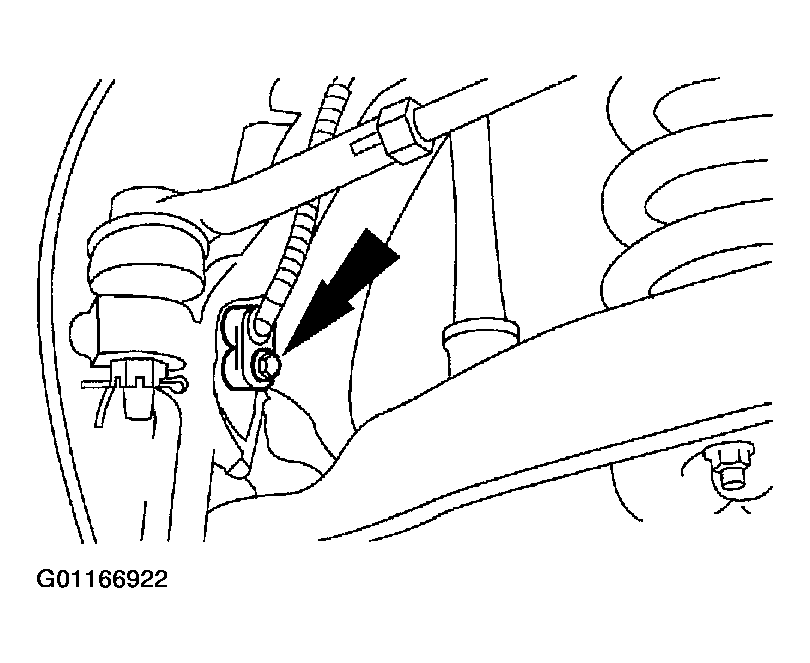

Front Speed Sensor (4X2) Removal/Installation
- Raise and support the vehicle.
- Disconnect the speed sensor electrical connector and unclip the front speed sensor wire from the vehicle frame.
- Remove the bolt and speed sensor.
- Install in reverse order of removal.
- Tightening Torque
- 11-13 N.m (1.1-1.3 kgf.m, 9-10 ft.lbf)
- Tightening Torque
