2002 Mazda 626 ES, AutomaticFACTORY OEM SERVICE PROCEDURE
Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module | On left side of engine compartment. |
| ABS/TCS Control Module | On left side of engine compartment. |

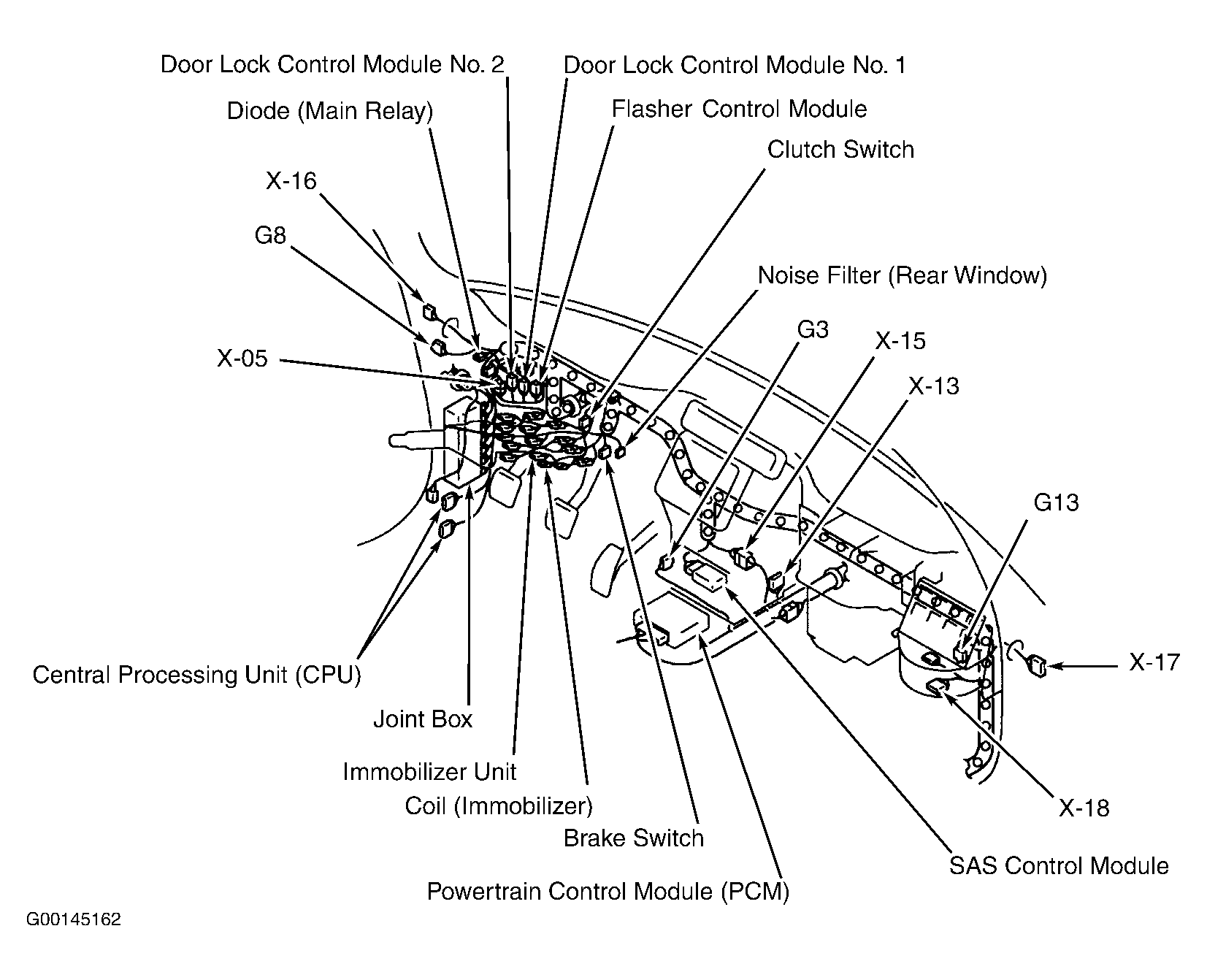

| Central Processing Unit (CPU) | Behind left side of dash, below joint box. See Figure . |
| Cruise Control Module | On left front inner fender panel. |
| Door Lock Control Module No. 1 | Behind left side of dash, near joint box. See Figure . |
| Door Lock Control Module No. 2 | Behind left side of dash, near joint box. See Figure . |
| Flasher Control Module | Behind left side of dash. See Figure . |
| Immobilizer Unit | Behind left side of dash, near joint box. See Figure . |
| Keyless Control Module | In left front of trunk. |
| Powertrain Control Module (PCM) | Under center console. See Figure . |
| SAS Control Module | Under center of dash. See Figure . |
| Sun Roof Control Module | Above headliner, forward of sun roof opening. |
