2002 Mazda 626 ES, AutomaticFACTORY OEM SERVICE PROCEDURE
TCS Off Switch Inspection
- Remove the TCS OFF switch.

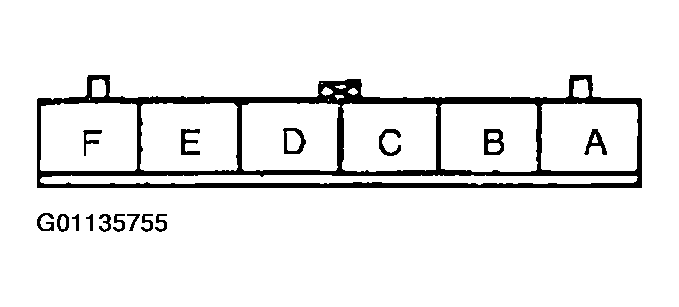

- Measure the resistance between B and C of the connector.
- If not within the specification, replace the TCS OFF switch.
Resistance
When Switch Is Pressed: 100 ohms Or Less When Switch Is Released:
