2002 Mazda 626 ES, AutomaticFACTORY OEM SERVICE PROCEDURE

Piston Disassembly Note

Turn the adjustment gear clockwise with an Allen wrench to remove the piston from the adjustment gear. (Turn the adjustment gear until it becomes easy to turn.)

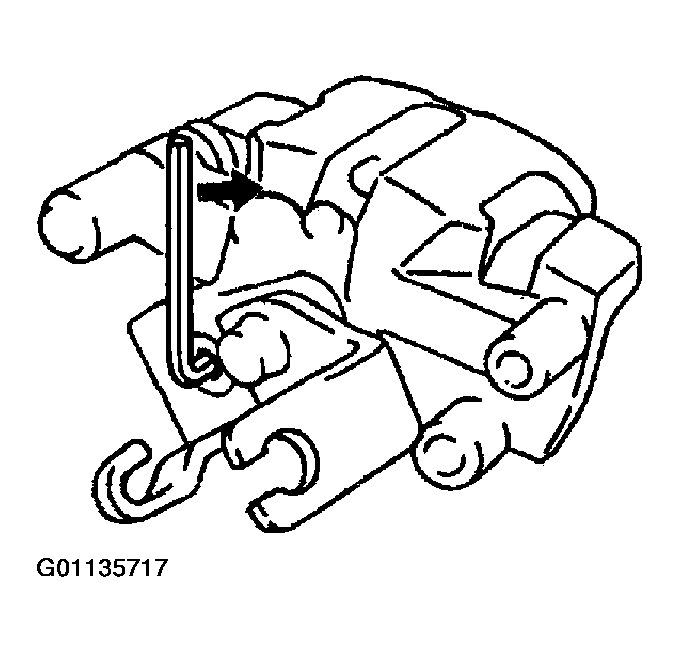

Fig 1: Turning Adjustment Gear Clockwise
Courtesy of MAZDA MOTORS CORP.
