2002 Mazda 626 ES, AutomaticFACTORY OEM SERVICE PROCEDURE
Power Brake Unit Removal/Installation
- Remove the master cylinder. See MASTER CYLINDER REMOVAL/INSTALLATION .

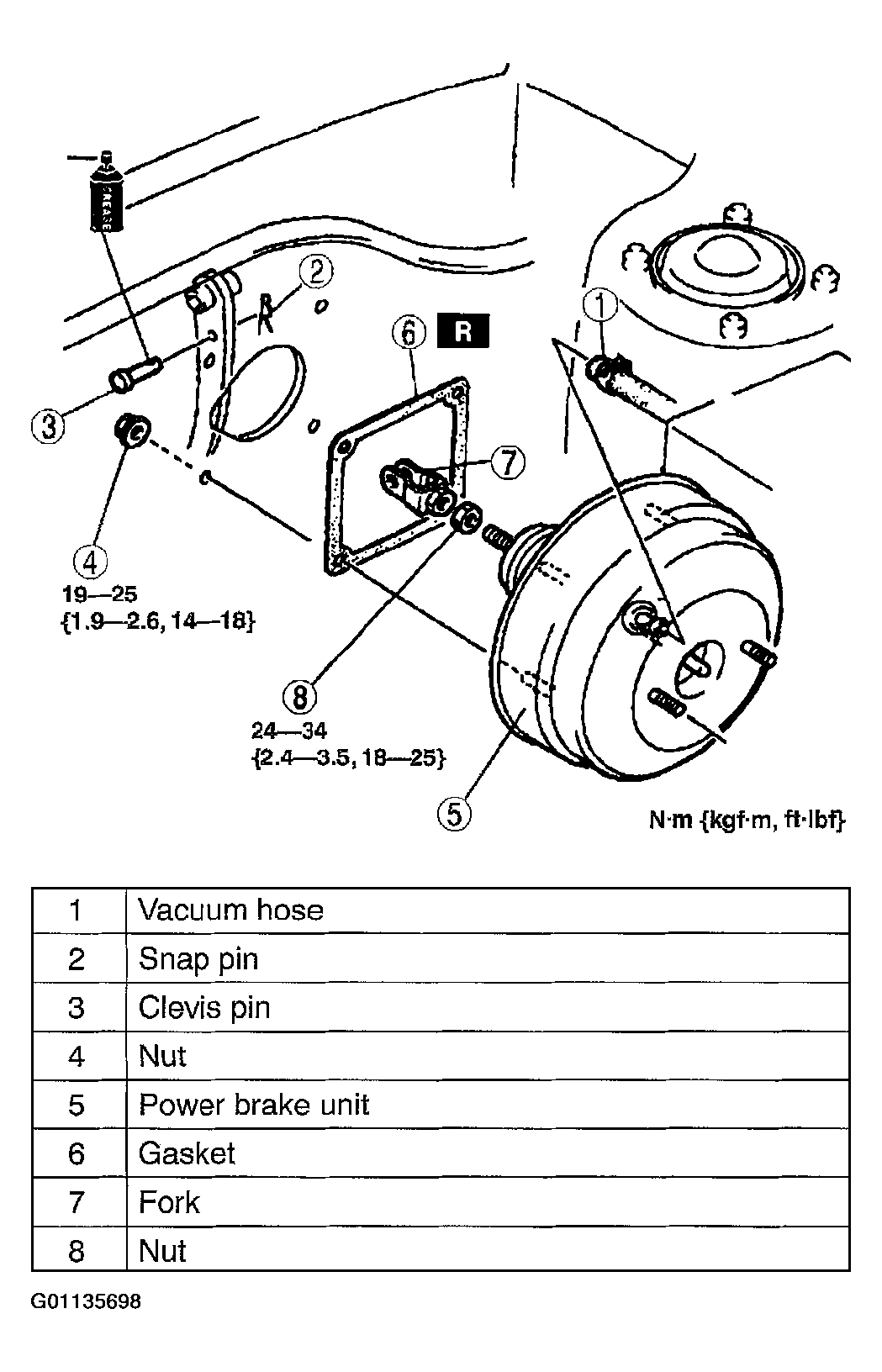

- Remove in the order indicated in Fig 1 .
- Install in the reverse order of removal.
